Holosun DRS-TH thermal imaging device with integrated red dot sight, 256 x 192 pixel thermal sensor, interchangeable reticle

Important Note for Orders in Germany Please note: Before shipping, we will check the validity of your BKA exemption permit. Send it to us via email after placing your order, including your order number. Shipping can only proceed after a successful review.

Important! Item requires permission! Legal Notice: Purchase in Germany is only possible with a BKA exemption permit. The acquisition, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries. You can only acquire this item that requires permission if you possess the appropriate acquisition authorization. It is the sole responsibility of the user to inform themselves about the applicable regulations in their country before acquisition or use and to comply with them. Consult your responsible authority!

The Holosun DRS-TH (Digital Reflex Sight - Thermal) redefines the boundaries of modern red dot optic technology. This closed reflex sight with a red reticle and integrated thermal imaging function combines innovative technology with the highest precision and durability. Due to its closed container design, large lens, and robust aluminum housing, the DRS-TH is optimally suited for use under the most demanding conditions. It reliably withstands strong temperature fluctuations, dust, dirt, and adverse weather conditions, always guaranteeing a clear, stable field of view. The DRS-TH presents itself as a state-of-the-art, professional sight with a compact design, equipped with an advanced thermal imaging system. The precise sensor captures the environment as well as the heat signatures emitted by objects and converts them - completely independent of external light sources - into a detailed, high-contrast image. The captured thermal image data is processed at a resolution of 256 × 192 pixels and displayed sharply on an integrated OLED display. Thanks to the large thermal sensor, the DRS-TH combines the capabilities of a classic illuminated dot sight with advanced thermal overlay, offering the user the best of both worlds.

With a battery life of up to 10 hours for the thermal sensor and operation time of over 50,000 hours for the red dot sight, this system is well-equipped for the longest missions. The integrated thermal system also features internal memory, enabling the recording and later playback of images. Power is supplied either by two 18350 rechargeable batteries, which are included, or by two CR123 batteries. It should be noted that only rechargeable batteries may be charged with the supplied cable. When using conventional batteries, the cable must not be connected, as this could damage the device. The USB cable serves not only for power supply but also for data transfer, allowing stored content to be displayed directly on a computer. The display image is updated at a frame rate of 50 FPS, ensuring smooth rendering. Additionally, it is possible to capture individual still images.

The available display modes "White Light", "Black Light", "Outline", and "Highlight" offer the user maximum flexibility to adapt the display to the respective operational conditions. Events can be captured with the integrated thermal camera at the touch of a button, as the video recording is directly built into the system and is intuitively operable.

When the thermal camera is not needed, the front lens cap can simply be flipped down, allowing the DRS-TH to be used like a conventional illuminated dot sight. In this way, the user can always benefit from the combination of both technologies and can flexibly adapt the device to the specific situation.

The Picatinny-standard weapon mount is securely fixed by a robust, hand-operable bolt. The entire construction consists of high-quality, long-lasting materials and meets the IP67 protection standard, ensuring safe use under extreme conditions.

The DRS-TH can be precisely adjusted with the supplied tool. Each click corresponds to an adjustment of 0.5 MOA and allows for corrections in the range of ±50 MOA. Additionally, modern digital technology offers continuous magnification from 1x to 5x, allowing the sight to be optimally adapted to different distances and requirements.

• Battery CR2032 3V Lithium Knopfzelle
• Protection class IP 67
• Housing Color black

• Perfectly suitable for hunting, airsoft, authorities (please note that the use for hunting or airsoft may be prohibited according to the legal situation in the respective country). Premium sights with military-standard and parallax-free construction! Mounting on Picatinny is possible, and our magnifiers (HM3X / HM3XT / HM6X) can be combined.
• Long service life, ultra-efficient LED technology, and Shake Awake function.
• Thermal imaging function in combination with interchangeable red dot reticle. 4 image modes, 1x, 3x, 5x digital zoom, and on-board photo and video recording function.
• Always ready for action: Thanks to its closed design and extremely robust construction, you can handle the toughest situations with confidence. Changeable reticle, choose between a 2MOA dot, a 65MOA circle, or a combined reticle (circle dot).
• OLED display with 1024x768 pixels. Thermal imaging sensor with 256x192 px and 50fps.

Delivery Content

Holosun DRS-TH

• Lens cleaning cloth
• T10 Torx wrench
• 11mm hex key
• Battery compartment tool
• Magnetic USB charging cable
• 2x 18350 batteries
• Cleaning pen HS-LENS-CLEANING-PEN
• User manual
• Insert note on optics
• Insert note on reticle
• Insert warranty brochure
• Protective case

Main Data

• EAN: 4055132021535
• Warranty: 3 years
• Customs tariff number: 90131090000

Technical Parameters

• Operating Temperature: -30°C - 60 °C
• Storage Temperature: -40°C - 70 °C

Electrical Parameters

• Operating Voltage: 3 V DC
• Battery: CR2032 3V Lithium Knopfzelle
• Battery count: 1

Mechanical Parameters

• Material: aluminium
• Housing Color: black
• Weight: 230 g
• Protection Class: IP 67

Shop+Web

• Delivery Content: Holosun DRS-TH
• Lens cleaning cloth
• T10 Torx wrench
• 11mm hex key
• Battery compartment tool
• Magnetic USB charging cable
• 2x 18350 batteries
• Cleaning pen HS-LENS-CLEANING-PEN
• User manual
• Insert note on optics
• Insert note on reticle
• Insert warranty brochure
• Protective case

Holosun

• Reticle type: 2MOA Red dot/65 MOA Ring
• Reticle switchable: yes
• Style: Closed Reflex
• Reticle adjustment: Eingebettete X/Y Absehenverstellung
• Mounting type: Torx
• High riser mount: no
• Battery compartement: Einschub seitlich
• Lens size: 23x30 mm
• Magnification: 1x
• Solar cell: yes
• Automatic brightness adjustment: yes
• pistol sight: no
• rifle sight: yes
• Shake Awake - Function: yes
• Memory function: yes
• Battery lifetime: 50000 h
• W&E Range: ± 40 MOA
• Vibration strength: 1000 G
• Flip cap type: no
• Killflash: no
• Light sources: LED
• BKA exception: yes
• Reticle color: rot
• Footprint: Picatinny

Footprint Information

1. Footprint: Picatinny footprint

Passende Montagen

INNOMOUNT Slight Long Blaser Mount for optics / reflex sights / red dot
Innomount Blaser Quick Release Mount for your HOLOSUN reflex sight Piggy Pack assembly with Picatinny rail - the ring mount for your rifle scope!
Piggy Pack assembly with Picatinny rail - the ring mount for your rifle scope! Ring mount with 2x picatinny for Holosun Sights
Ring mount with 2x picatinny for Holosun Sights

Accessesories

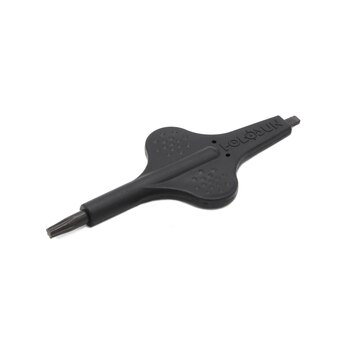

Holosun Assembly Hex Key for DRS
