Holosun IRIS-4-GR-IR Compact Target Laser with 4-fold function, 520 nm and 830 nm laser, 60mW VCSEL IR laser illuminator, white light LED lamp, 7075 Aluminium, IP 68, Picatinny

Important Notice for Orders in Germany:
Please note: Before shipping, we will check the validity of your BKA special permit. Send it to us by email after your order, including your order number. The shipment can only proceed after successful verification.

Important! Item requiring a permit! Legal Notice:
Acquisition in Germany is only possible with a BKA special permit.
The acquisition, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries.
You can only purchase this item requiring a permit if you have the appropriate acquisition authorization.
It is the sole responsibility of the user to inform themselves about and comply with the applicable regulations in their country before acquisition or use.
Ask your local authority!

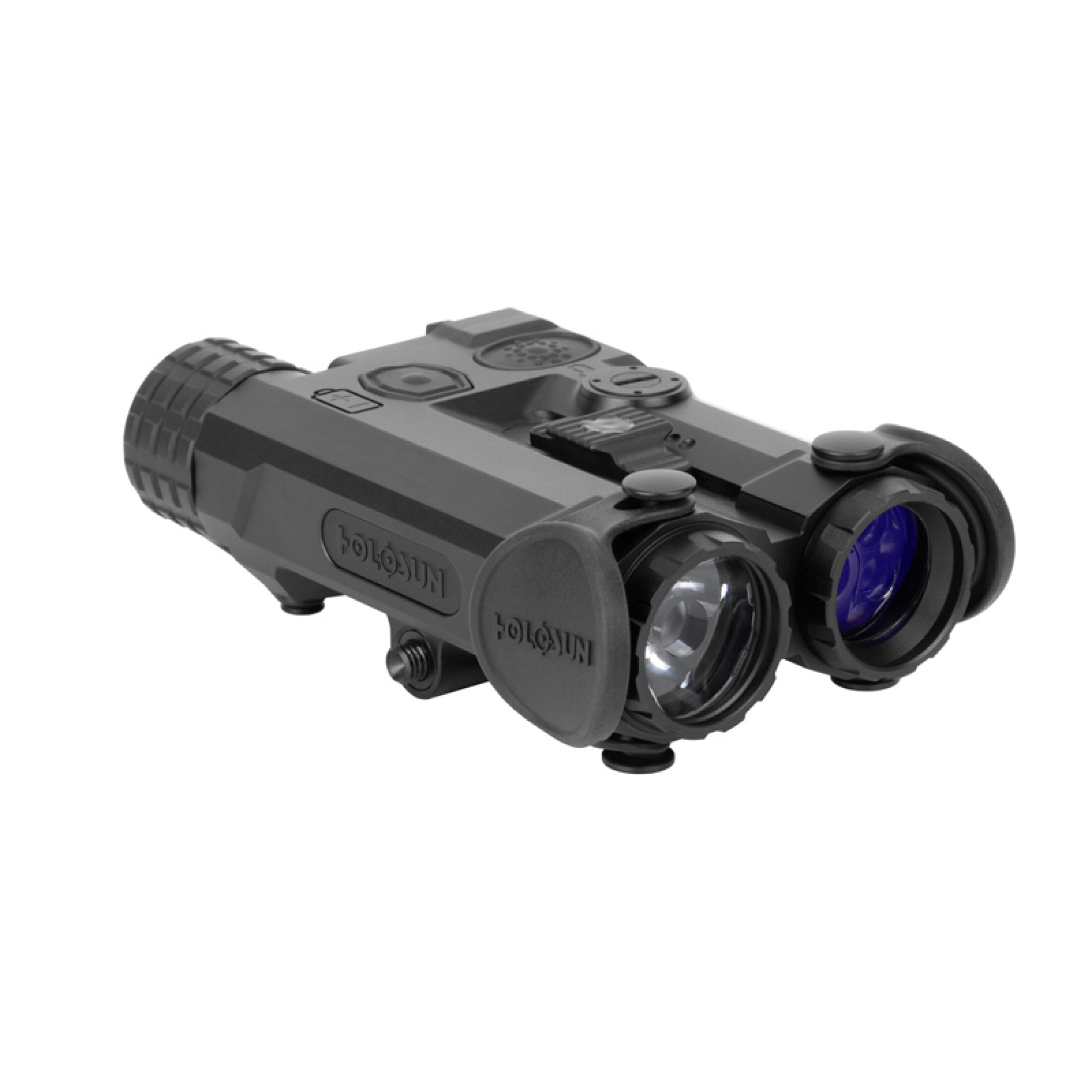

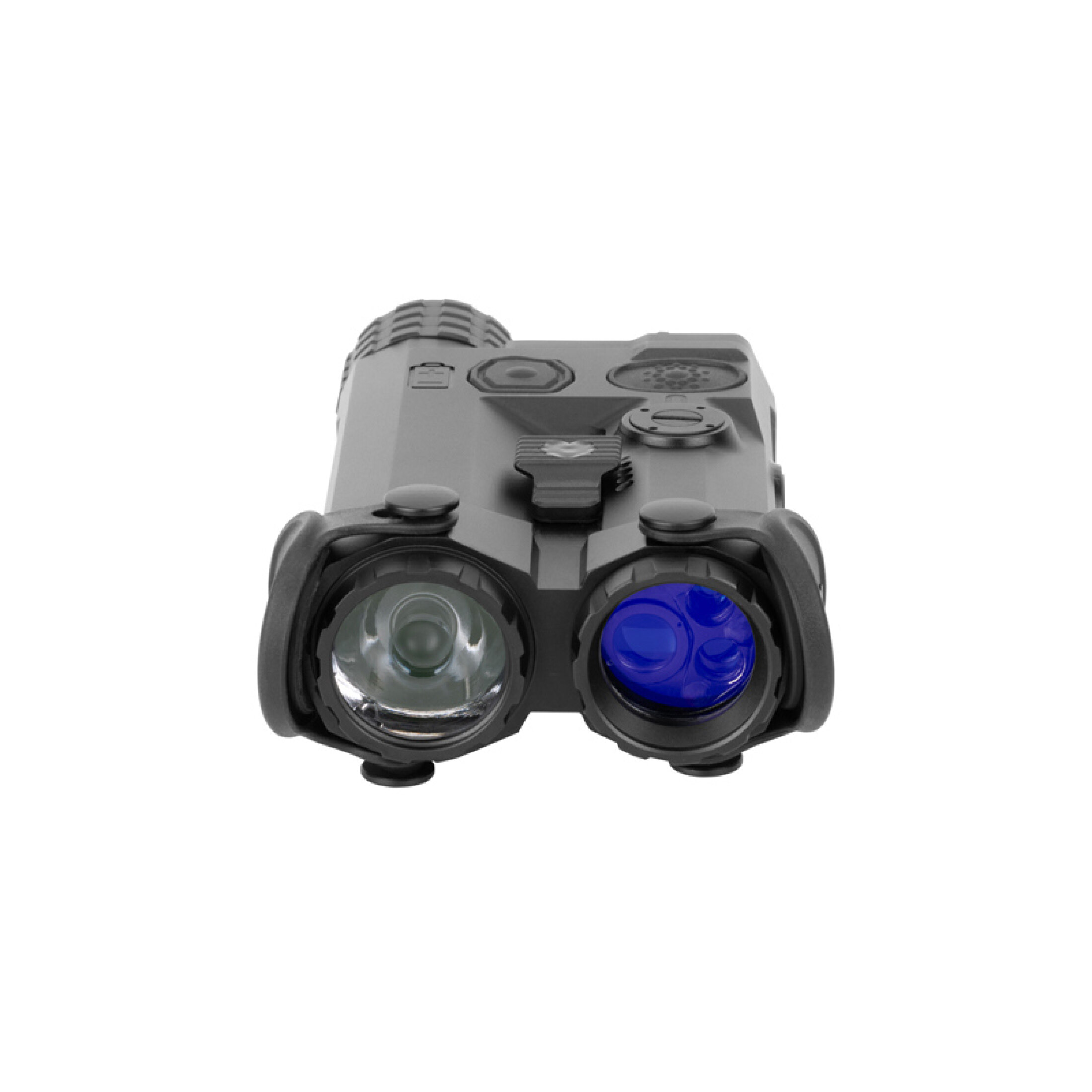

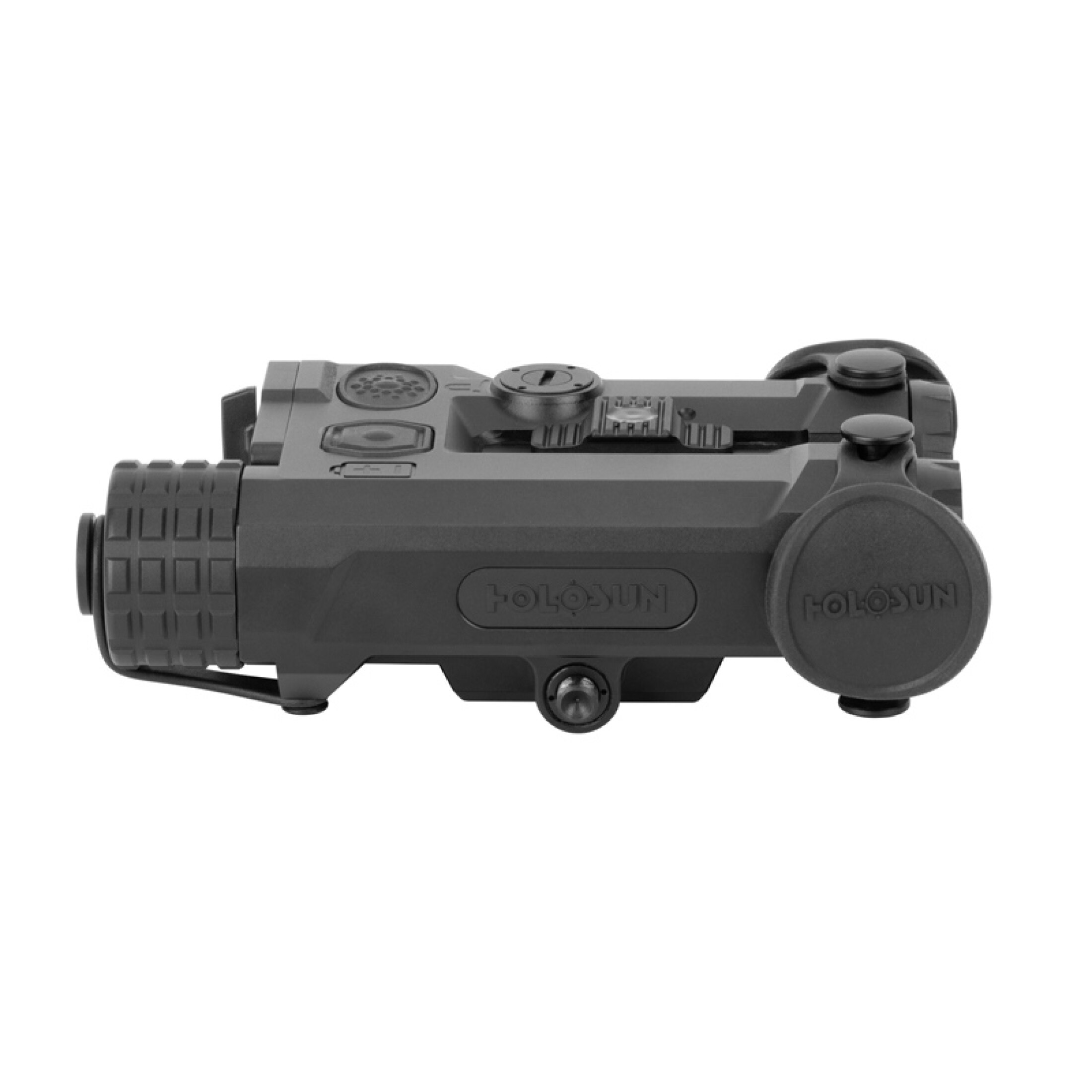

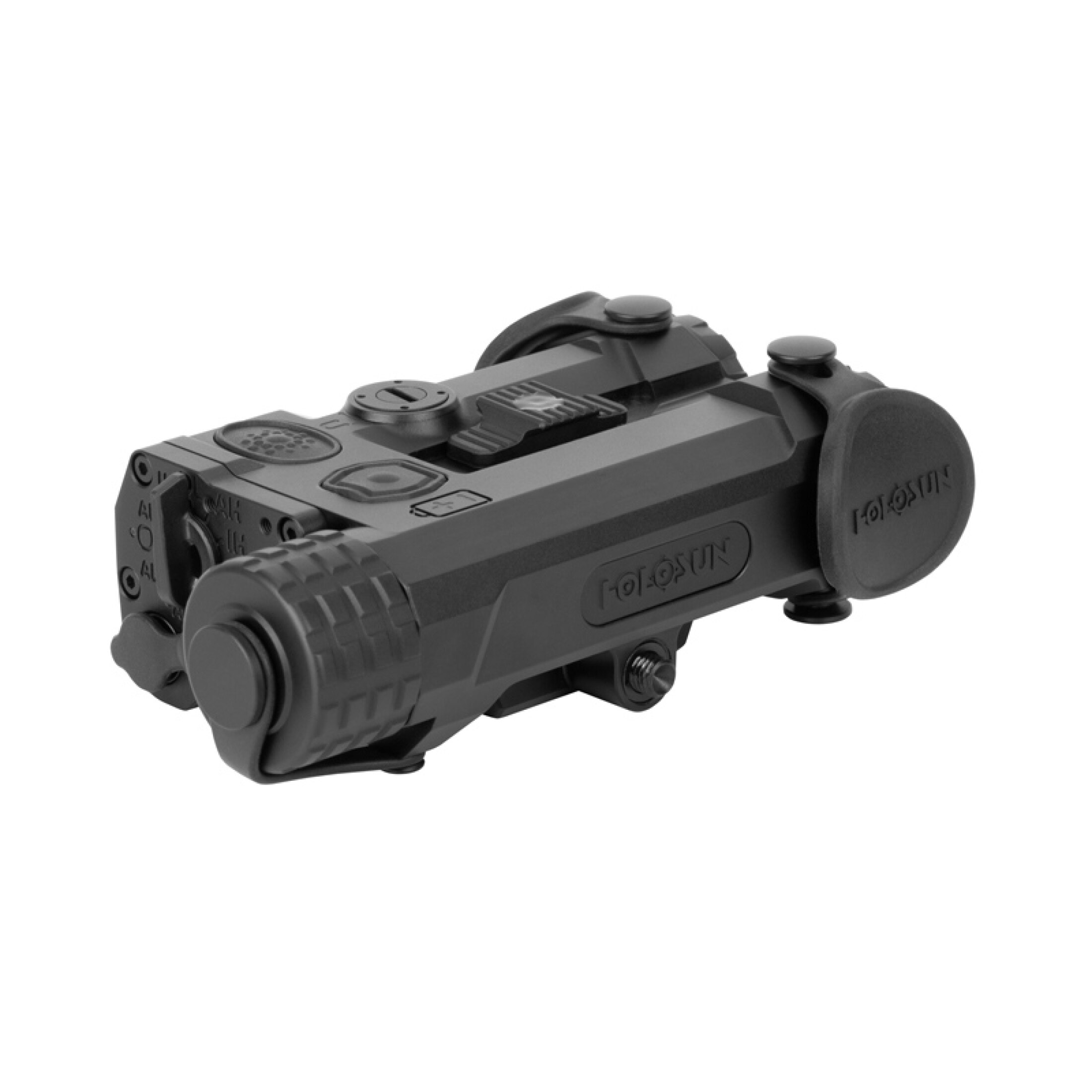

The Holosun IRIS-4-GR-IR is a target laser (visible + IR + IR laser illuminator) in an ultra-compact 7075 Aluminium housing - deliberately flatter and lighter than its predecessor, with a centrally placed trigger button for ambidextrous operation. This advanced system integrates co-aligned visible green and infrared (IR) target lasers, allowing for precise zeroing in daylight with the visible laser and a seamless transition to IR functionality for nighttime operations. A powerful 60-mW VCSEL IR illuminator delivers excellent performance in low-light conditions and darkness in conjunction with night vision devices. A top-mounted beam adjustment knob allows for quick, glove-friendly adjustment of the IR beam from wide to narrow for optimal performance across different engagement distances.

Ideal for users who want a bright green dot during the day and switch to IR with night vision devices at night. Two independent fire buttons allow for tactile, ambidextrous control of the laser and light functions, while the updated rear-positioned on/off and mode selector provides optimized control. The IRIS module offers four operating modes, each with two brightness levels. The user can choose between a green laser, an IR laser, a VCSEL laser illuminator, and a white light LED lamp, available in two power levels. The included three-button remote switch connects via a crane plug and offers a visible laser override function for quick activation. For versatile power supply options, the IRIS-RD4 supports both the included rechargeable 18650 battery via USB-C and two CR123A batteries, ensuring reliable power supply in any operating environment.

• Multi-laser device with coaxial green visible laser pointer & IR laser and IR illuminator
• LED white light flash light
• Rear side focusing knob
• Quick release mount
• Waterproofed remote cable switch

• Professional laser device with quadruple function, offering maximum performance in an ultra-compact design.
• Visible red laser (520 nm), IR laser (830 nm), 60 mW IR-VCSEL laser illuminator as well as white light LED lamp with 1000 lumens and 25000 candela - for visible and night vision applications.
• Robust: IP 68 protection, operating range -40°C - 50 °C, vibration resistant up to 1000 G
• Operated with CR123A Industrial Lithium Battery, 3V 1400mAh, adjustment range ± 50 MOA MOA
• Ergonomic: Two independent fire buttons enable tactile, two-handed control of the laser and light functions, while the updated rear-positioned on/off and mode selector offers optimized control. A rear mode selector switch and tactical gel cable switch (included) allow for comfortable operation by both right and left-handed users.

Delivery Content

Holosun IRIS-4-GR-IR

• Triple Remote Switch (Crane-Plug)
• CR123A Industrial Lithium Battery, 3V 1400mAh
• Adjustment Tool (e.g. Allen Key)
• Lens Cleaning Cloth
• Rubber Cap / Cover Cap for Laser Opening
• Protective Case
• Instruction Manual
• Included Warranty Brochure

Main Data

• EAN: 4055132039981
• Warranty: 3 years
• Customs tariff number: 90132000000

Technical Parameters

• Operating Temperature: -40°C - 50 °C
• Storage Temperature: -40°C - 70 °C

Optical Parameters

• Optical Power: 0.7 mW
• Laser Class: 3R

Electrical Parameters

• Operating Voltage: 6 V DC
• Battery: CR123A Industrial Lithium Battery, 3V 1400mAh
• Battery count: 2

Mechanical Parameters

• Size: 81x50x34 mm
• Material: 7075 Aluminium
• Housing Color: black
• Weight: 180 g
• Protection Class: IP 68

Shop+Web

• Delivery Content: Holosun IRIS-4-GR-IR
• Triple Remote Switch (Crane-Plug)
• CR123A Industrial Lithium Battery, 3V 1400mAh
• Adjustment Tool (e.g. Allen Key)
• Lens Cleaning Cloth
• Rubber Cap / Cover Cap for Laser Opening
• Protective Case
• Instruction Manual
• Included Warranty Brochure

Holosun

• Style: Aiming
• Mounting type: QD
• Battery compartement: Seitlich
• rifle sight: yes
• Surface finish: MAO
• W&E Range: ± 50 MOA
• Vibration strength: 1000 G
• Flip cap type: yes
• Light sources: LED + Laser
• BKA exception: yes
• LED illuminator: yes
• LED illumniator wavelength: White
• LED illuminator power: 1,000 lum
• Laser illuminator wavelength: 830 nm
• Footprint: Picatinny
