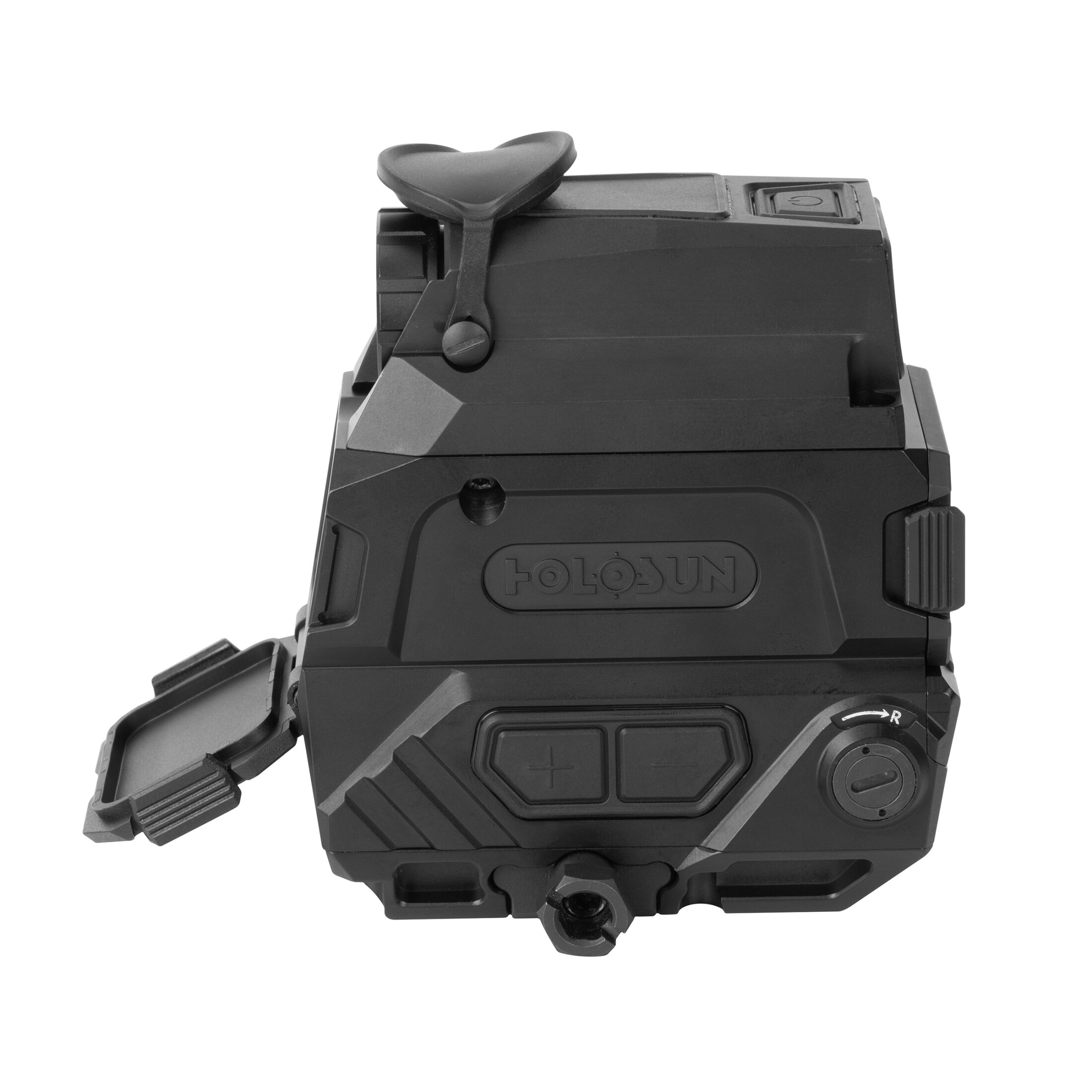

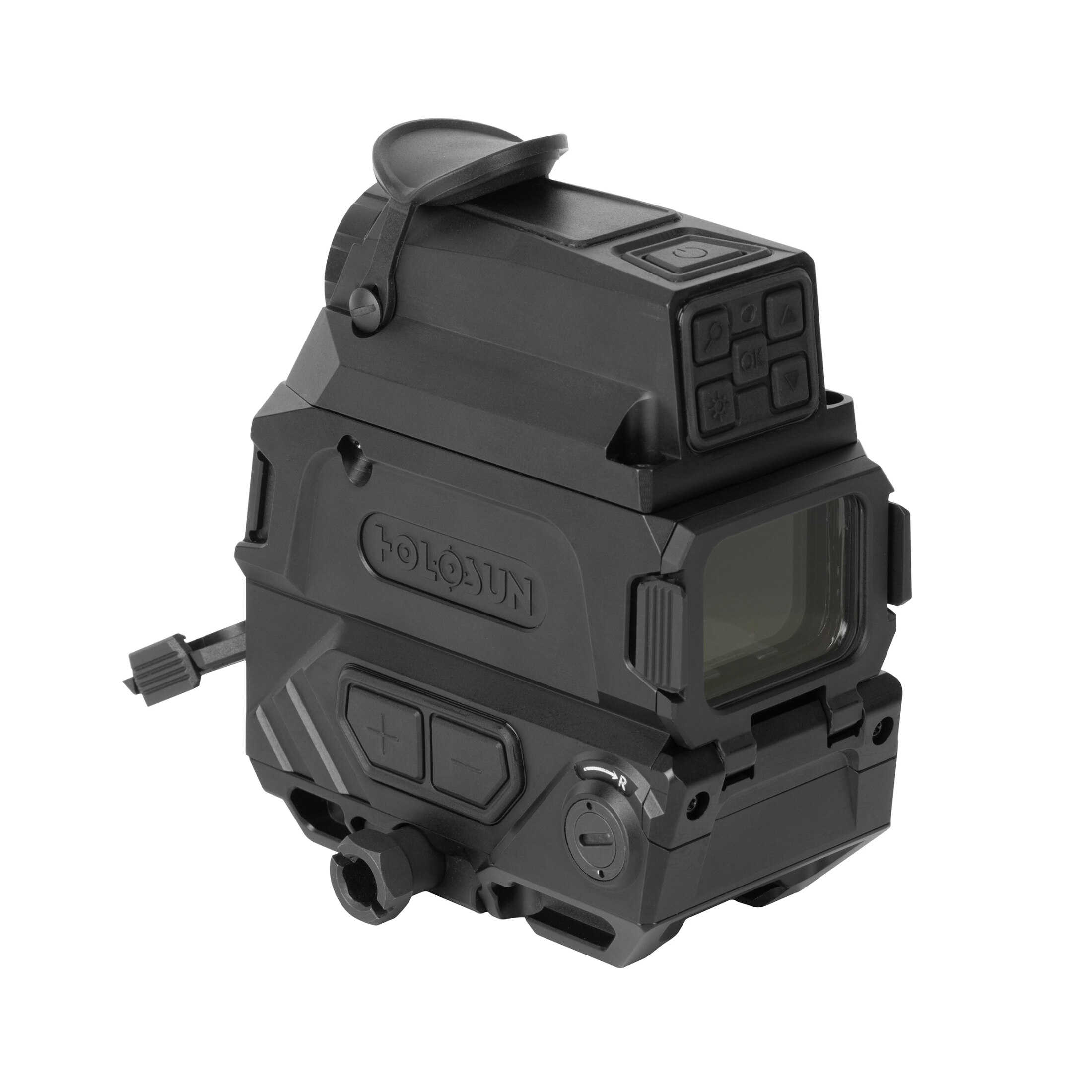

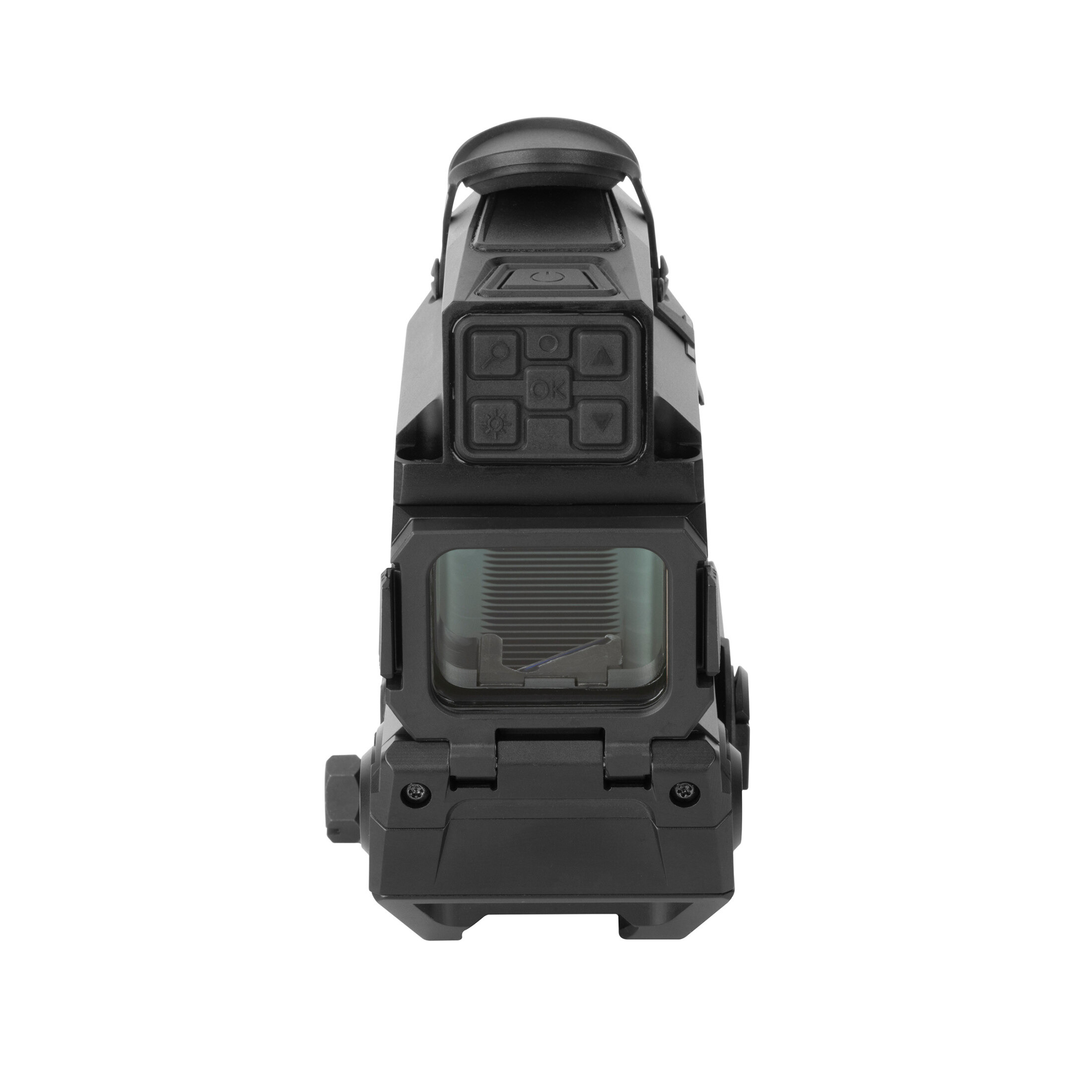

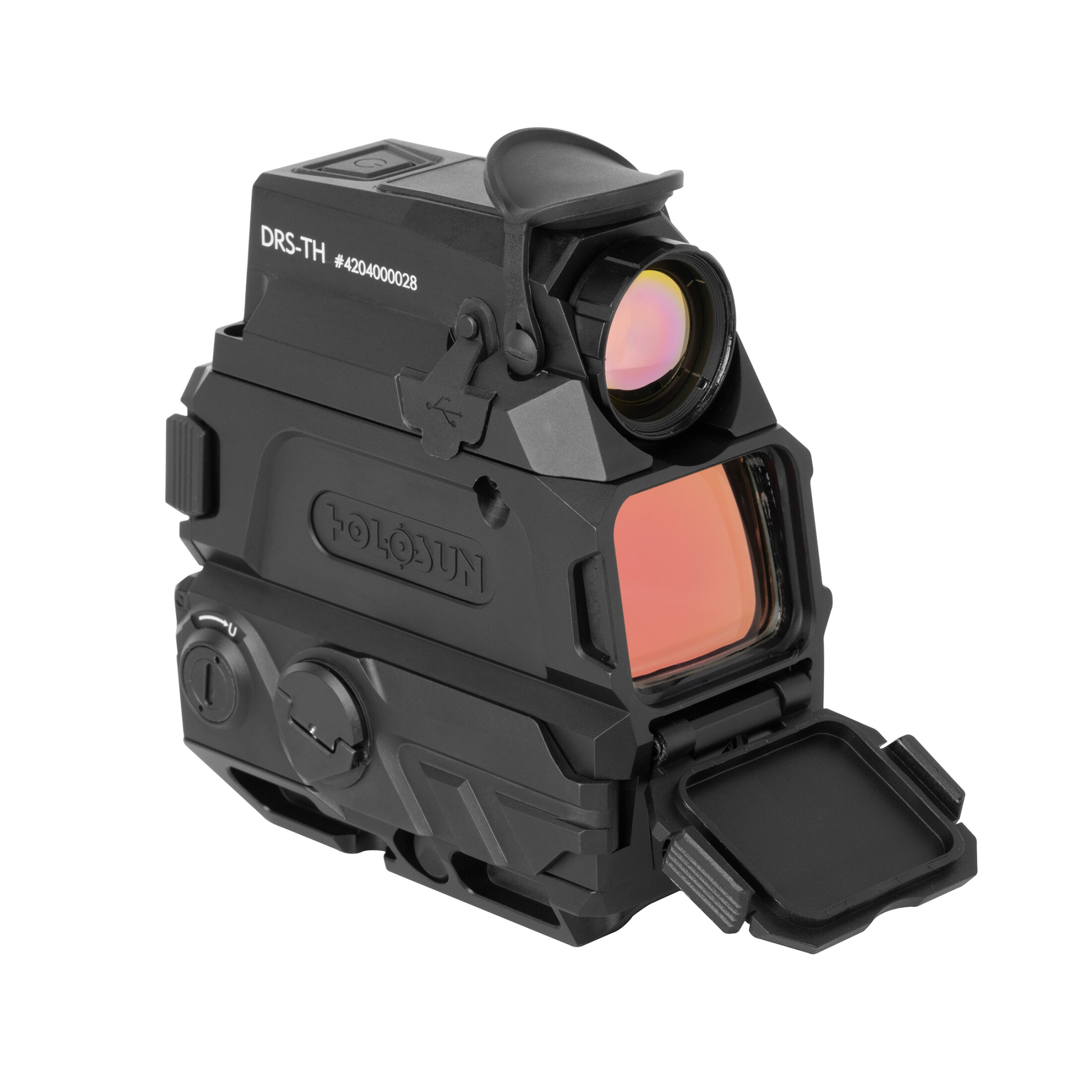

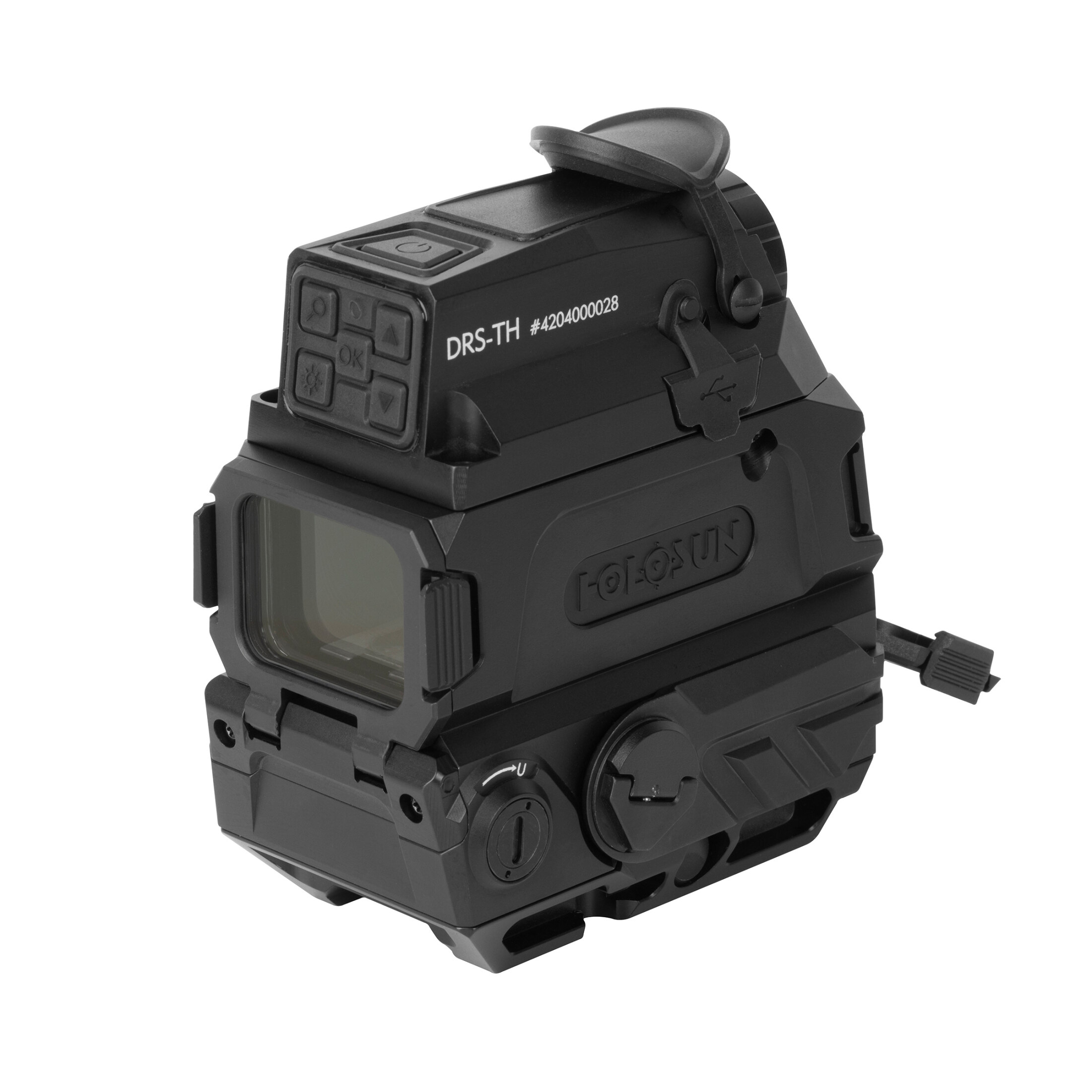

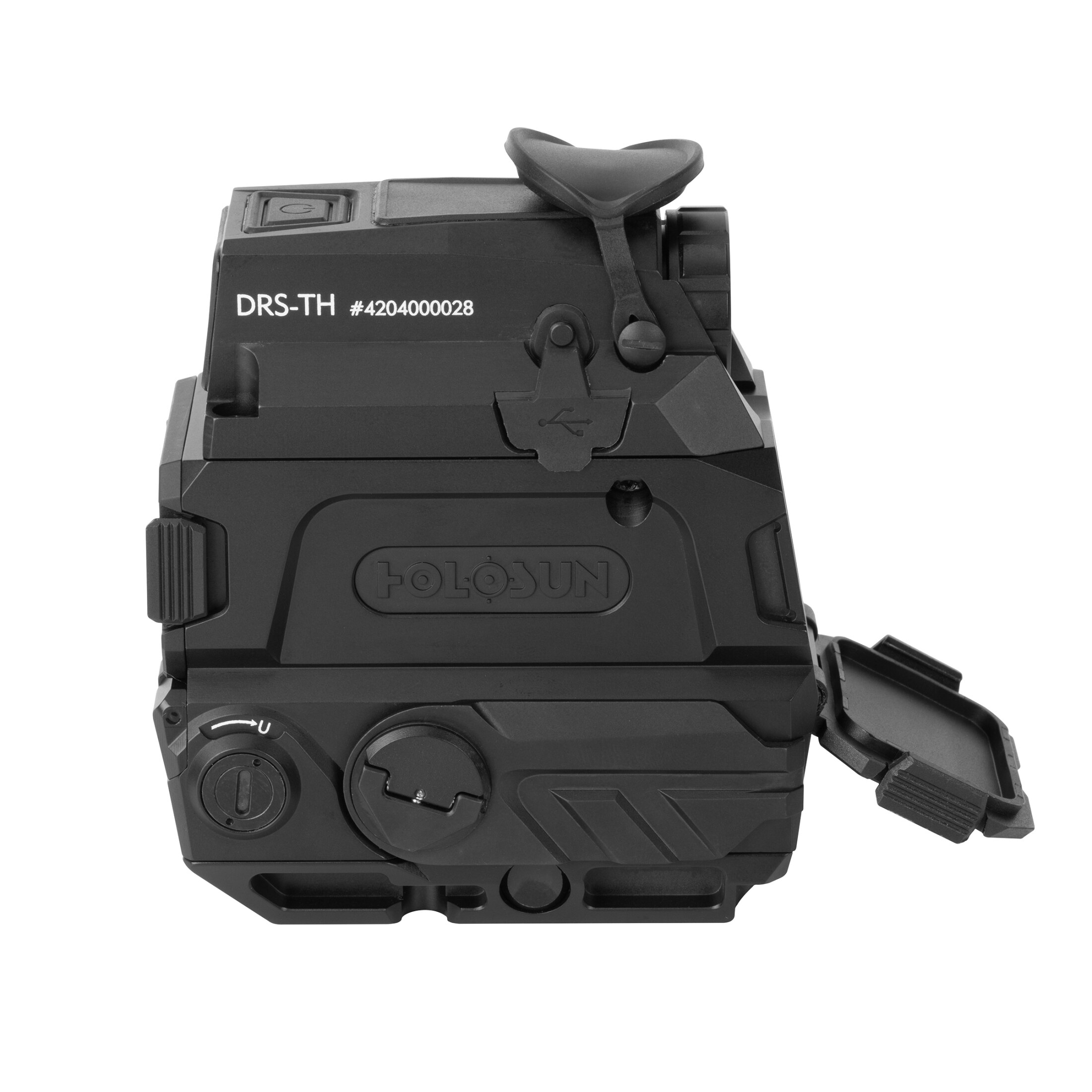

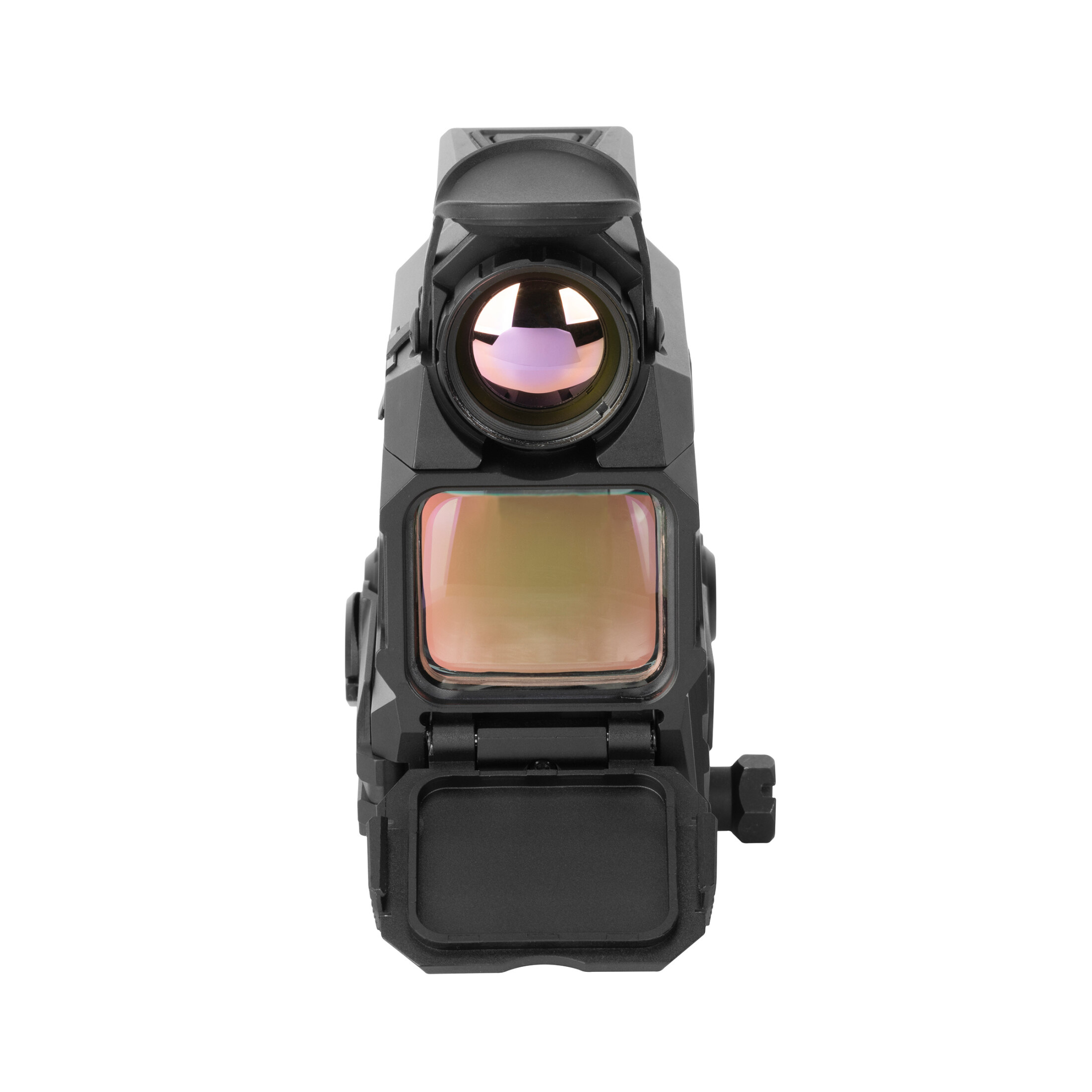

Holosun DRS-TH thermal imaging device with integrated red dot sight, 256 x 192 pixel thermal sensor, interchangeable reticle

Important Note for Orders in Germany Please note: Before shipping, we will check the validity of your BKA exemption permit. Send it to us via email after placing your order, including your order number. Shipping can only proceed after a successful review.

Important! Item requires permission! Legal Notice: Purchase in Germany is only possible with a BKA exemption permit. The acquisition, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries. You can only acquire this item that requires permission if you possess the appropriate acquisition authorization. It is the sole responsibility of the user to inform themselves about the applicable regulations in their country before acquisition or use and to comply with them. Consult your responsible authority!

The Holosun DRS-TH (Digital Reflex Sight - Thermal) redefines the boundaries of red dot optic technology. This closed reflex sight with a red reticle and thermal imaging feature stands out due to its closed container design, large lens, and robust aluminum housing. It is ideal for the toughest conditions, withstanding high temperature fluctuations, dirt, and weather.

With a 256 x 192 pixel thermal sensor, the DRS-TH combines your conventional illuminated dot sight with a thermal overlay, offering you the best of both worlds. Up to 10 hours of battery life for the thermal sensor and over 50,000 hours of runtime for the red dot sight provide users with optics ready for the most demanding tasks.

The modes "White Light," "Black Light," "Outline," and "Highlight" offer you flexibility depending on the setting. Capture the action with the thermal camera effortlessly at the push of a button thanks to the integrated video recording feature.

If you don't need the thermal camera, simply flip down the front lens cap and use the DRS-TH like any of our conventional illuminated dot sights, thus benefiting from the advantages of both worlds.

• Battery CR2032 3V Lithium Knopfzelle
• Protection class IP 67
• Housing Color black

• Perfectly suited for hunting, airsoft, authorities. Premium sights with military standard and parallax-free design! Mounting on Picatinny is possible, additionally, our magnifiers (HM3X / Hm3XT / HM6X) can be combined.
• Long service life, ultra-efficient LED technology, and Shake Awake function.
• Thermal imaging function in combination with interchangeable red dot reticle. 4 image modes, 1x, 3x, 5x digital zoom, and on-board photo and video recording function.
• Always ready for action: Thanks to its closed design and extremely robust construction, you can handle the toughest situations with confidence. Changeable reticle, choose between a 2MOA dot, a 65MOA circle, or a combined reticle (circle dot).
• OLED display with 1024x768 pixels. Thermal imaging sensor with 256x192 px and 50fps.

Delivery Content

Holosun DRS-TH

• Lens cleaning cloth
• T10 Torx wrench
• 11mm hex key
• Battery compartment tool
• Magnetic USB charging cable
• 2x 18350 batteries
• Cleaning pen HS-LENS-CLEANING-PEN
• User manual
• Insert note on optics
• Insert note on reticle
• Insert warranty brochure
• Protective case

Main Data

• EAN: 4055132021535
• Warranty: 3 years
• Customs tariff number: 90131090000

Technical Parameters

• Operating Temperature: -30°C - 60 °C
• Storage Temperature: -40°C - 70 °C

Electrical Parameters

• Operating Voltage: 3 V DC
• Battery: CR2032 3V Lithium Knopfzelle
• Battery count: 1

Mechanical Parameters

• Material: aluminium
• Housing Color: black
• Weight: 230 g
• Protection Class: IP 67

Shop+Web

• Delivery Content: Holosun DRS-TH
• Lens cleaning cloth
• T10 Torx wrench
• 11mm hex key
• Battery compartment tool
• Magnetic USB charging cable
• 2x 18350 batteries
• Cleaning pen HS-LENS-CLEANING-PEN
• User manual
• Insert note on optics
• Insert note on reticle
• Insert warranty brochure
• Protective case

Holosun

• Reticle type: 2MOA Red dot/65 MOA Ring
• Reticle switchable: yes
• Style: Closed Reflex
• Reticle adjustment: Eingebettete X/Y Absehenverstellung
• Mounting type: Torx
• High riser mount: no
• Battery compartement: Einschub seitlich
• Lens size: 23x30 mm
• Magnification: 1x
• Solar cell: yes
• Automatic brightness adjustment: yes
• pistol sight: no
• rifle sight: yes
• Shake Awake - Function: yes
• Memory function: yes
• Battery lifetime: 50000 h
• W&E Range: ± 40 MOA
• Vibration strength: 1000 G
• Flip cap type: no
• Killflash: no
• Light sources: LED
• BKA exception: yes
• Reticle color: rot
• Footprint: Picatinny

Accessesories

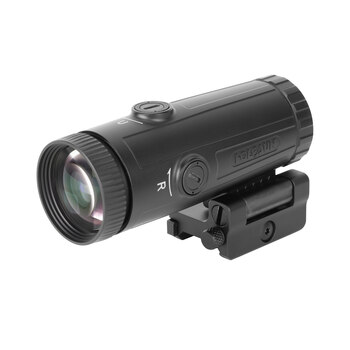

Holosun Magnifier HM6X, 6 fach Vergrößerung, schwarz, Picatinny
