Holosun Dot Sight HE515C-T-GR


Product number: 70151442
Product information "Holosun Dot Sight HE515C-T-GR"

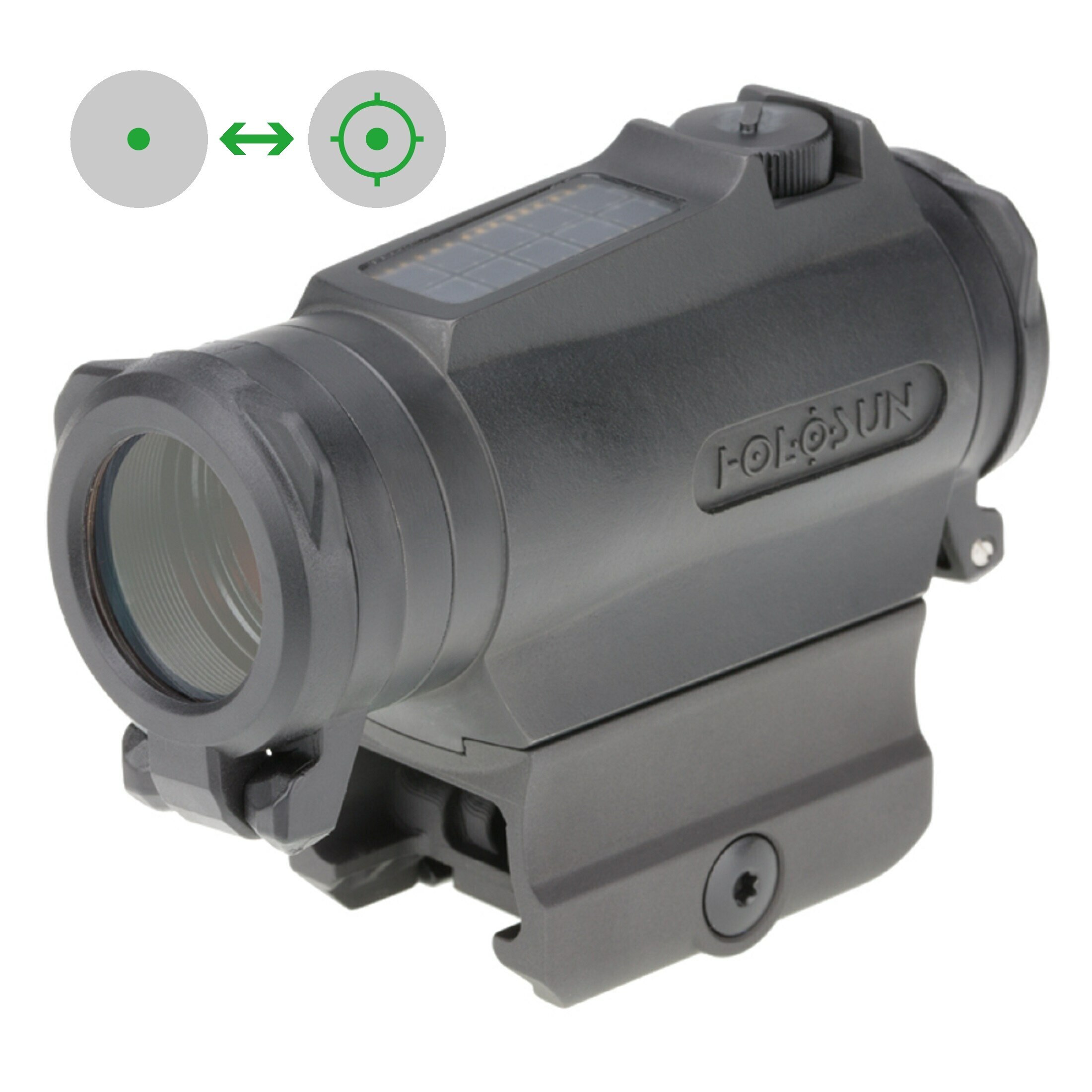

The product HE515C-T-GR is a Green Dot Sight with switchable reticle. Please notice the bevelled objective lens which avoids reflexes from e.g. sunlight. The Green Dot Sight requires only a few microamperes as operating current. This allows an operating time up to 50,000 hours with only one battery (depending on brightness of green dot). Auto power on/off: The sight will be automatically turned off after not being used for 8 hours.

  • Holosun ELITE Green Dot Sight HE515C-T-GR
  • Reticle: 2MOA Dot, 65 MOA Circle, Switchable between Circle Dot and Single Dot
  • Brightness adjustment, 12 settings for the intensity of the red dot in order to match the ambient light conditions
  • Base: Picatinny/Weaver, compatible with different mounts on request
  • Mount: incl. removable high riser mount
  • Lens Size: 20mm
  • Lifetime LED Technology - 50.000h dot / 20.000h circle dot
  • Nitrogen filling
  • incl. flip up objective for dust covering
  • Warranty: 3 years With this Green Dot Sight you acquired a high quality and innovative product. Sights from Holosun are handy and robust Green Dot Sights. They are used for hunting and shooting as well as for military and police applications. In addition to the efficient LED-Technology, our Holosun products feature, depending on the product type, a switchable Circle Dot, electronic motion sensors and solar cells. The cells provide energy for autonomous power supply. Our products can be used in combination with night vision devices. Holosun sights are designed for open target acquisition. They allow to focus on the target with both eyes open. Likewise the viewing distance is irrelevant. Hereby the target acquisition accelerates significantly. Because of the parallax free construction, the reticle always remains at the same position.
  • Bevelled front lens
  • Battery BATT-CR2032
  • Protection class IP 68
  • Housing Color schwarz
  • Material 7075 Aluminium

delivery content

Holosun HE515C-T-GR Schnellspannmontage Picatinny Linsenreinigungstuch T10 Torx Schraubenschlüssel Batterie Werkzeug 2x CR2032 Batterie Flip Cap integriert Killflash integriert Bedienungsanleitung Beileger Hinweis zur Optik Beileger Hinweis zum Absehen Beileger Garantie Broschüre

Main Data

  • EAN: 4055132015770
  • customs tarif number: 90131090

Technical Parameters

  • Operating Temperature: -40°C - 60 °C
  • Storage Temperature: -50°C - 70 °C

Electrical Parameters

  • Operating Voltage: 3 V DC

Mechanical Parameters

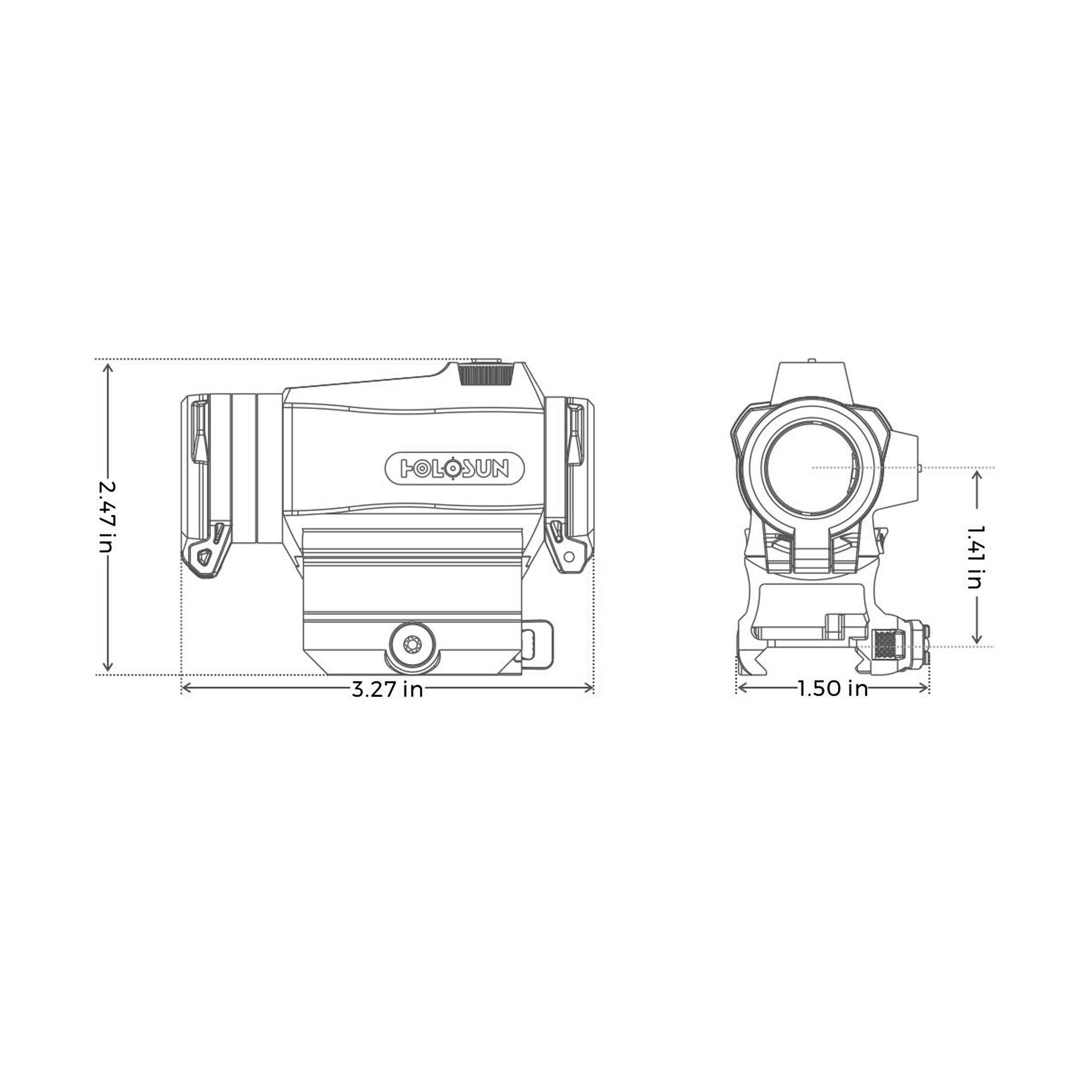

  • Size: 45x62x35 mm
  • Material: 7075 Aluminium
  • Housing Color: black
  • Weight: 199 g
  • Protection Class: IP 68


  • delivery content: Holosun HE515C-T-GR QD mount Picatinny Lens Cloth T10 Torx tool Battery tool 2x CR2032 battery Flip Cap Killflash Manual Enclosed note on optics Enclosed note on the reticle Guarantee brochure


  • Reticle type: 2MOA Red dot/65 MOA Ring
  • Reticle switchable: yes
  • Style: Micro
  • Reticle adjustment: Eingebettete X/Y Absehenverstellung
  • Mounting type: QD
  • High riser mount: yes
  • Battery compartement: Seitlich
  • Lens size: 20 mm
  • Magnification: 1x
  • Solar cell: no
  • Automatic brightness adjustment: no
  • Shake Awake - Function: yes
  • Memory function: yes
  • Battery lifetime: 20,000 h
  • Surface finish: Hard anodized
  • W&E Range: ± 50 MOA
  • Vibration strength: 1,000 G
  • Flip cap type: Glas-Flipkappen
  • Killflash: yes
  • Light sources: LED
  • Reticle color: grün
  • flip caps inclusive: yes
