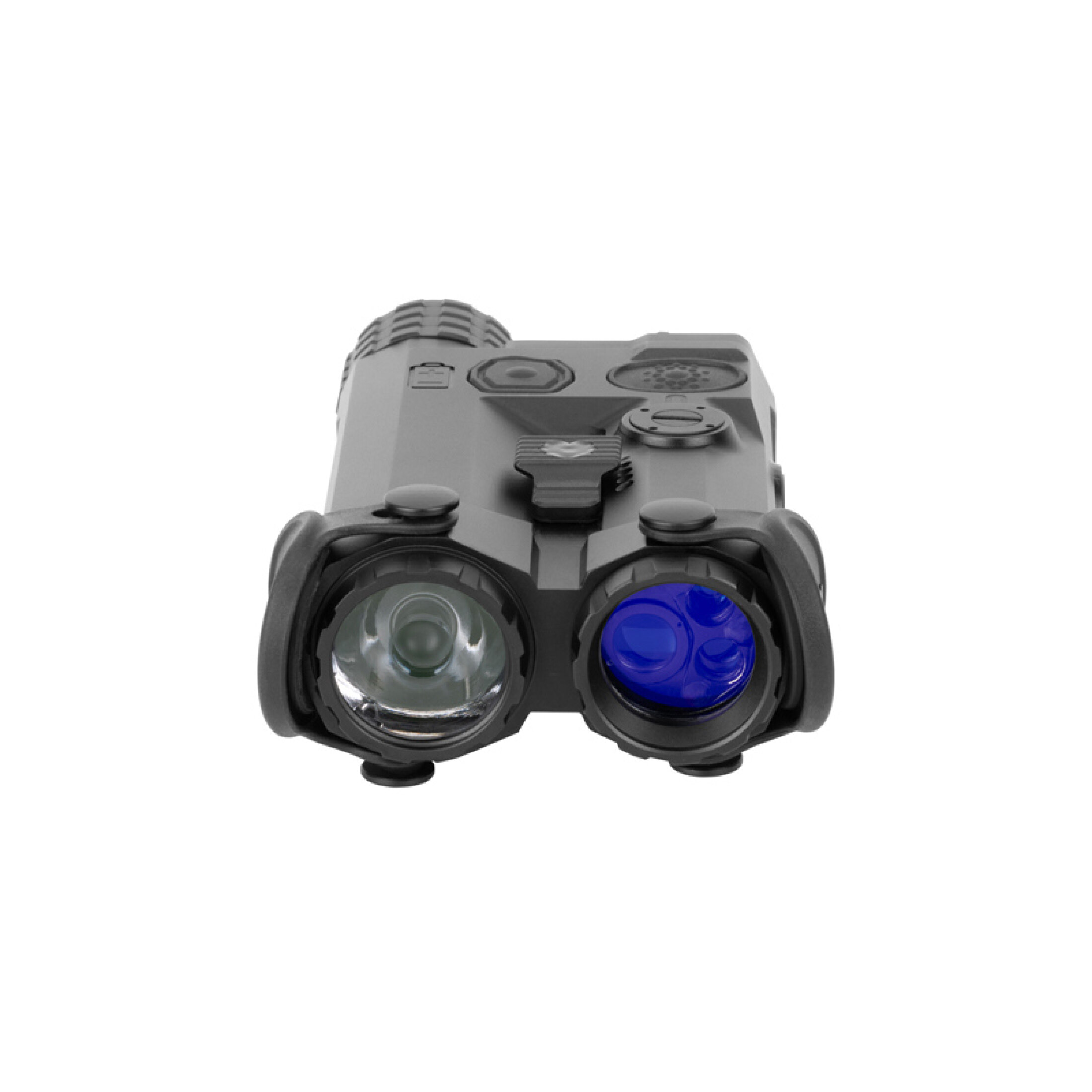

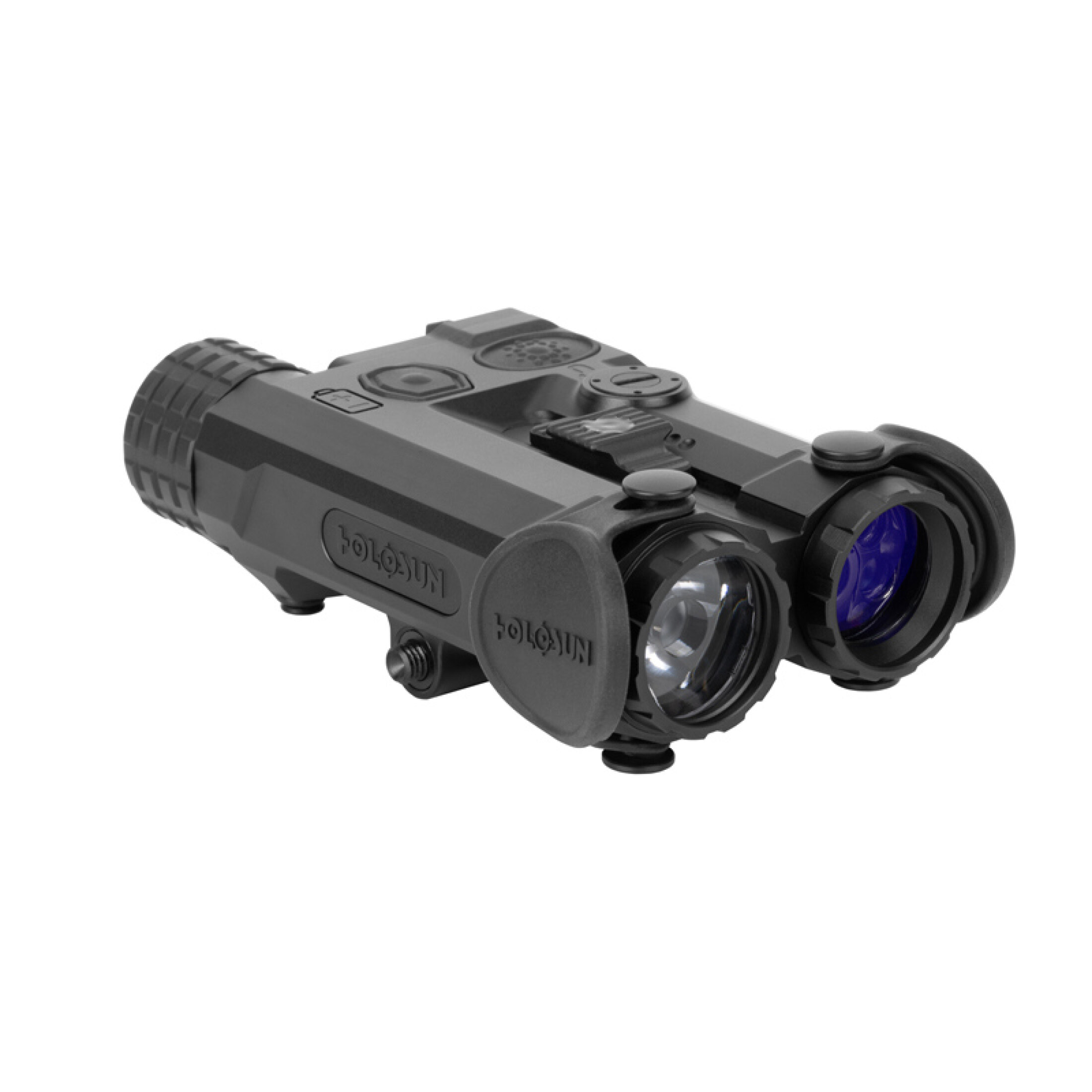

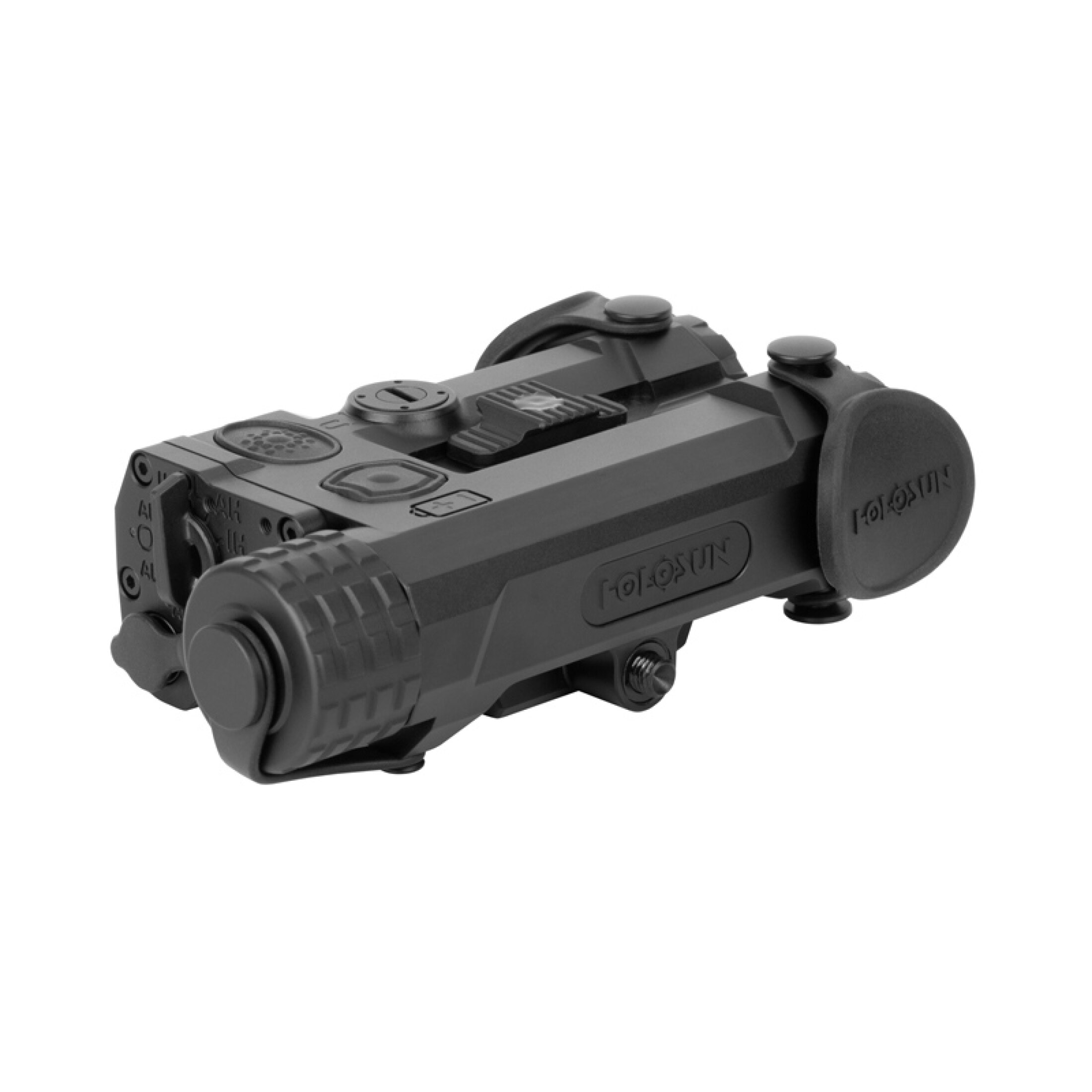

Holosun IRIS-4-RD-IR Compact Target Laser with 4-fold Function, 635 nm and 830 nm Laser, 60mW VCSEL IR Laser Illuminator, White Light LED Lamp 7075 Aluminium, IP 68, Picatinny

Important notice for orders in Germany: Please note: Before shipping, we will check the validity of your BKA exemption permit. Send it to us via email, including your order number, after placing your order. Shipping can only occur after a successful verification.

Important! Item subject to authorization! Legal notice: Purchase in Germany is only possible with a BKA exemption permit. The acquisition, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries. You can only purchase this item subject to authorization if you possess the corresponding permit. It is the sole responsibility of the user to be informed about the applicable regulations in their country before purchase or use and to comply with them. Consult your competent authority!

The Holosun IRIS-4-RD-IR is a targeting laser (visible + IR + IR illuminator) in an ultra-compact 7075 Aluminium housing - deliberately flatter and lighter than its predecessor, with a centrally located activation button for ambidextrous operation. This advanced system integrates co-aligned visible red and infrared (IR) targeting lasers, allowing for precise daylight zeroing with the visible laser and seamless transition to IR functionality for night operations. A powerful 60 mW VCSEL IR illuminator delivers outstanding performance in low light conditions and darkness when used with night vision devices. A top-mounted beam adjustment dial allows for quick, glove-friendly adjustment of the IR beam from wide to narrow for optimal performance over different engagement distances.

Ideal for users who want a bright green dot during the day and wish to resort to IR with night vision devices at night. Two independent fire buttons provide tactile, ambidextrous control of laser and light functions, while the updated, rear-positioned on/off and mode selector offers optimized control. The IRIS module offers four operating modes, each with two brightness levels. The user can choose between a red laser, an IR laser, a VCSEL illuminator, and a white light LED lamp, all available in two power levels. The included three-button remote switch connects via a Crane plug, offering a visible laser override function for quick activation. For versatile power supply options, the IRIS-RD4 supports both the included rechargeable 18650 battery via USB-C and two CR123A batteries, ensuring reliable power supply in any operating environment.

• Multi-laser device with coaxial green visible laser pointer & IR laser and IR illuminator
• LED white light flash light
• Rear side focusing knob
• Quick release mount
• Waterproofed remote cable switch

• Professional laser device with quadruple function that offers maximum performance in an ultra-compact design.
• Visible red laser (635 nm), IR laser (830 nm), 60mW IR-VCSEL laser illuminator, and white light LED lamp with 1000 lumens and 25000 candela for visible and night vision applications
• Robust: IP 68 protection, operating range -40°C - 50 °C, vibration-resistant up to 1000 G
• Operates with CR123A Industrial Lithium Battery, 3V 1400mAh, adjustment range ± 50 MOA MOA
• Ergonomic: Two independent fire buttons enable tactile, ambidextrous control of the laser and light functions, while the updated, rear-positioned on/off and mode selector offers optimized control. A rear mode selector switch and tactical gel cable switch (included) allow comfortable operation for both right- and left-handed users.

Delivery Content

Holosun IRIS-4-RD-IR

• Triple Remote Switch (Crane-Plug)
• CR123A Industrial Lithium Battery, 3V 1400mAh
• Adjustment tool (e.g. Allen key)
• Lens cleaning cloth
• Rubber cap / cover cap for laser opening
• Protective case
• Instruction manual
• Warranty brochure insert

Main Data

• EAN: 4055132039837
• Warranty: 3 years
• Customs tariff number: 90132000000

Technical Parameters

• Operating Temperature: -40°C - 50 °C
• Storage Temperature: -40°C - 70 °C

Optical Parameters

• Optical Power: 5 mW
• Laser Class: 3R

Electrical Parameters

• Operating Voltage: 6 V DC
• Battery: CR123A Industrial Lithium Battery, 3V 1400mAh
• Battery count: 2

Mechanical Parameters

• Size: 81x50x34 mm
• Material: 7075 Aluminium
• Housing Color: black
• Weight: 180 g
• Protection Class: IP 68

Shop+Web

• Delivery Content: Holosun IRIS-4-RD-IR
• Triple Remote Switch (Crane-Plug)
• CR123A Industrial Lithium Battery, 3V 1400mAh
• Adjustment tool (e.g. Allen key)
• Lens cleaning cloth
• Rubber cap / cover cap for laser opening
• Protective case
• Instruction manual
• Warranty brochure insert

Holosun

• Style: Aiming
• Mounting type: QD
• Battery compartement: Seitlich
• rifle sight: yes
• Surface finish: MAO
• W&E Range: ± 50 MOA
• Vibration strength: 1000 G
• Flip cap type: yes
• Light sources: LED + Laser
• BKA exception: yes
• LED illuminator: yes
• LED illumniator wavelength: White
• LED illuminator power: 1,000 lum
• Laser illuminator wavelength: 830 nm
• Footprint: Picatinny
