Holosun IRIS-1-RD Compact Red-Dot Laser, 635 nm nm Laser, 7075 Aluminium, IP 68, Picatinny

Important Notice for Orders in Germany: Please note: Before shipping, we will check the validity of your BKA exemption permit. Send it to us after your order by email, including your order number. Shipping can only occur after a successful check.

Important! Item requiring authorization! Legal Notice: Purchase in Germany is only possible with a BKA exemption permit. The purchase, possession, assembly, and use of this device are subject to legal regulations in many European countries. You can only purchase this item requiring authorization if you have the appropriate purchase permit. It is the sole responsibility of the user to inform themselves about and comply with the applicable regulations in their country before purchase or use. Consult your relevant authority!

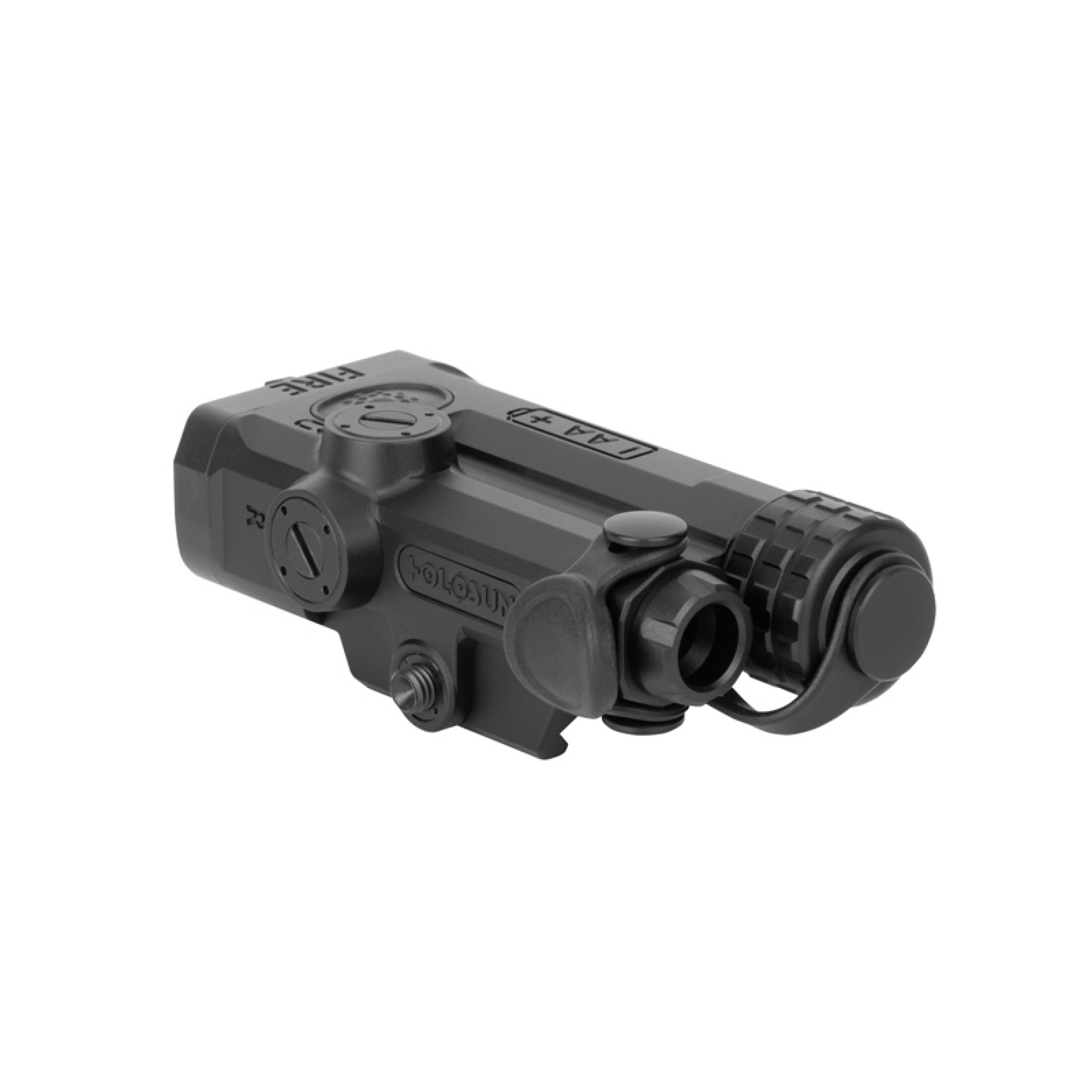

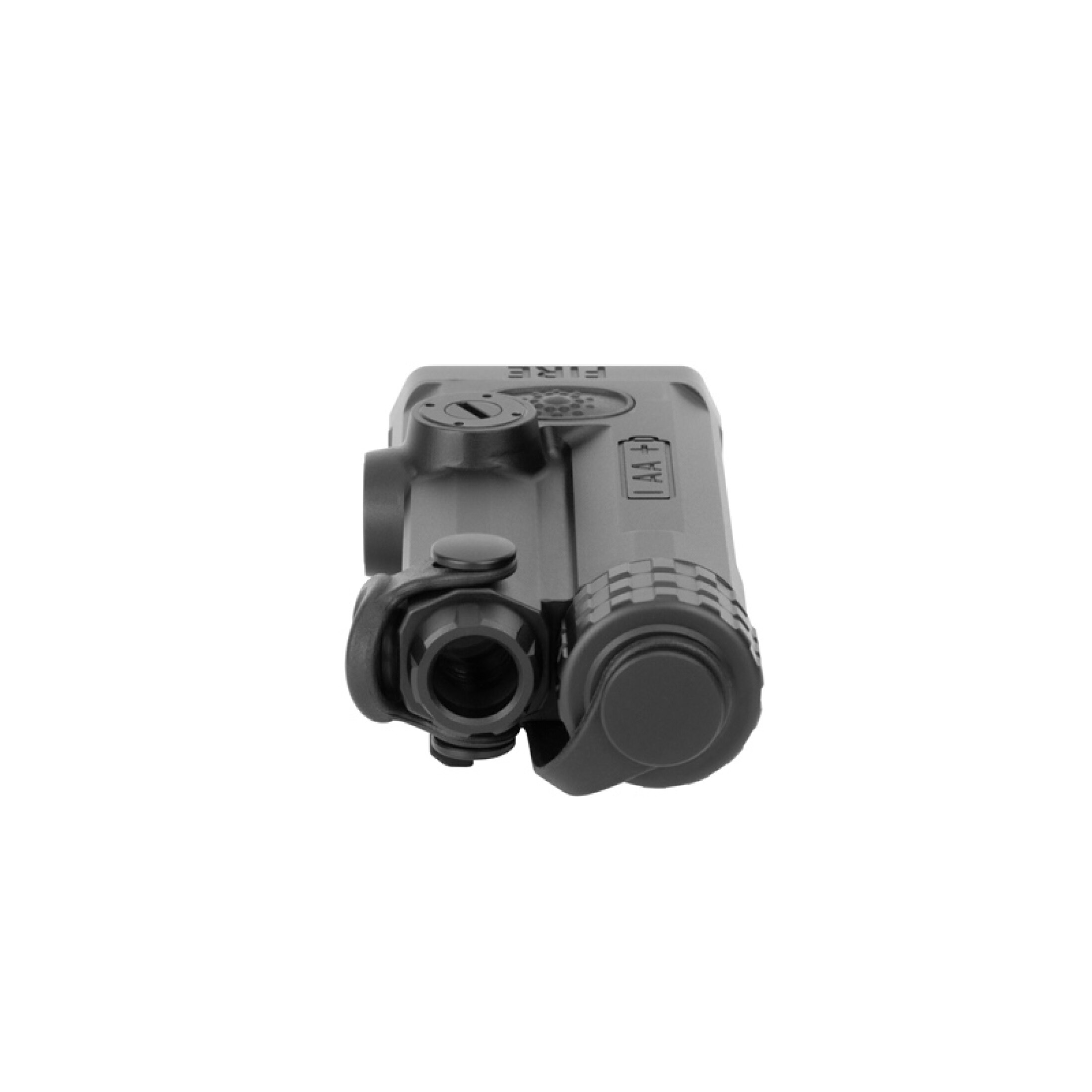

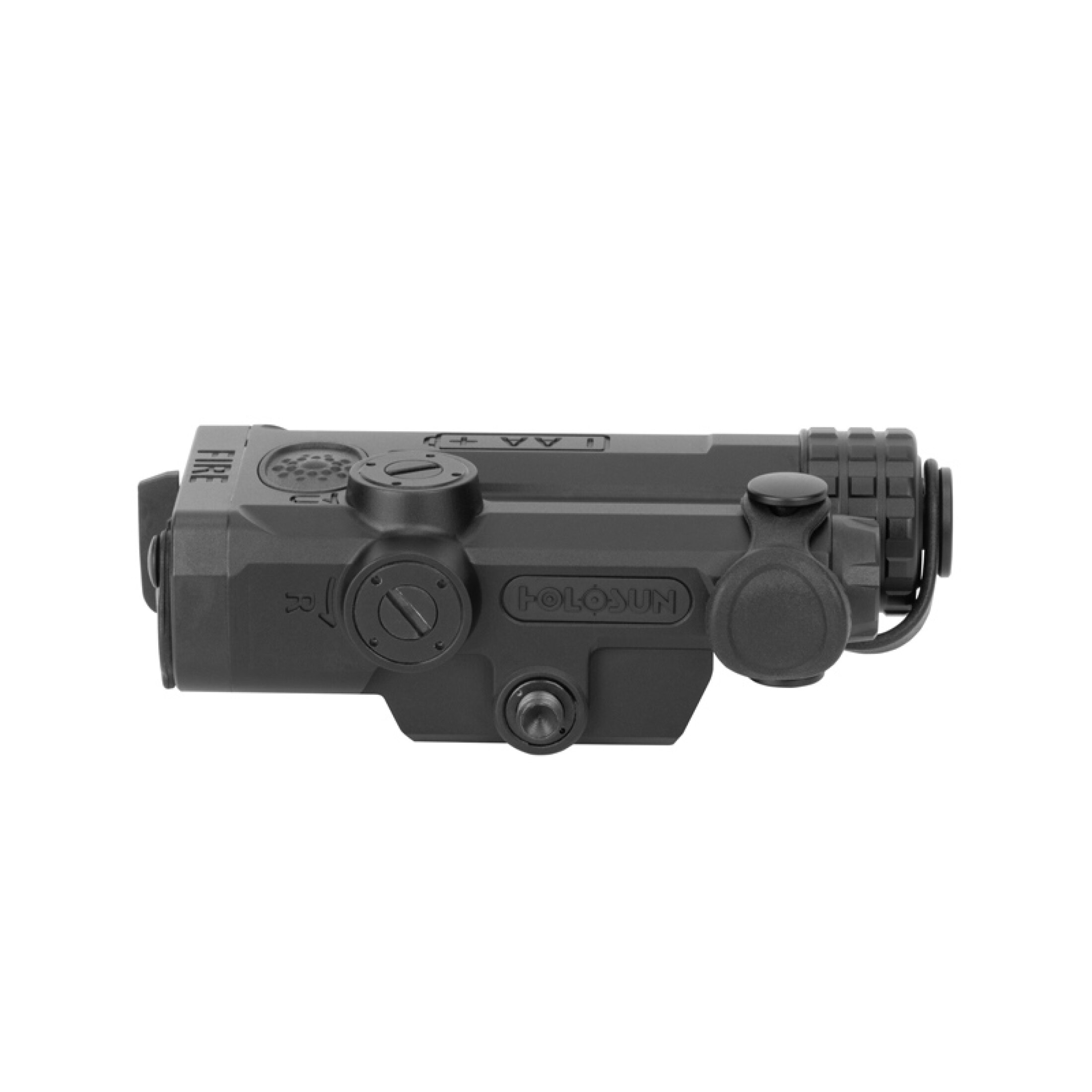

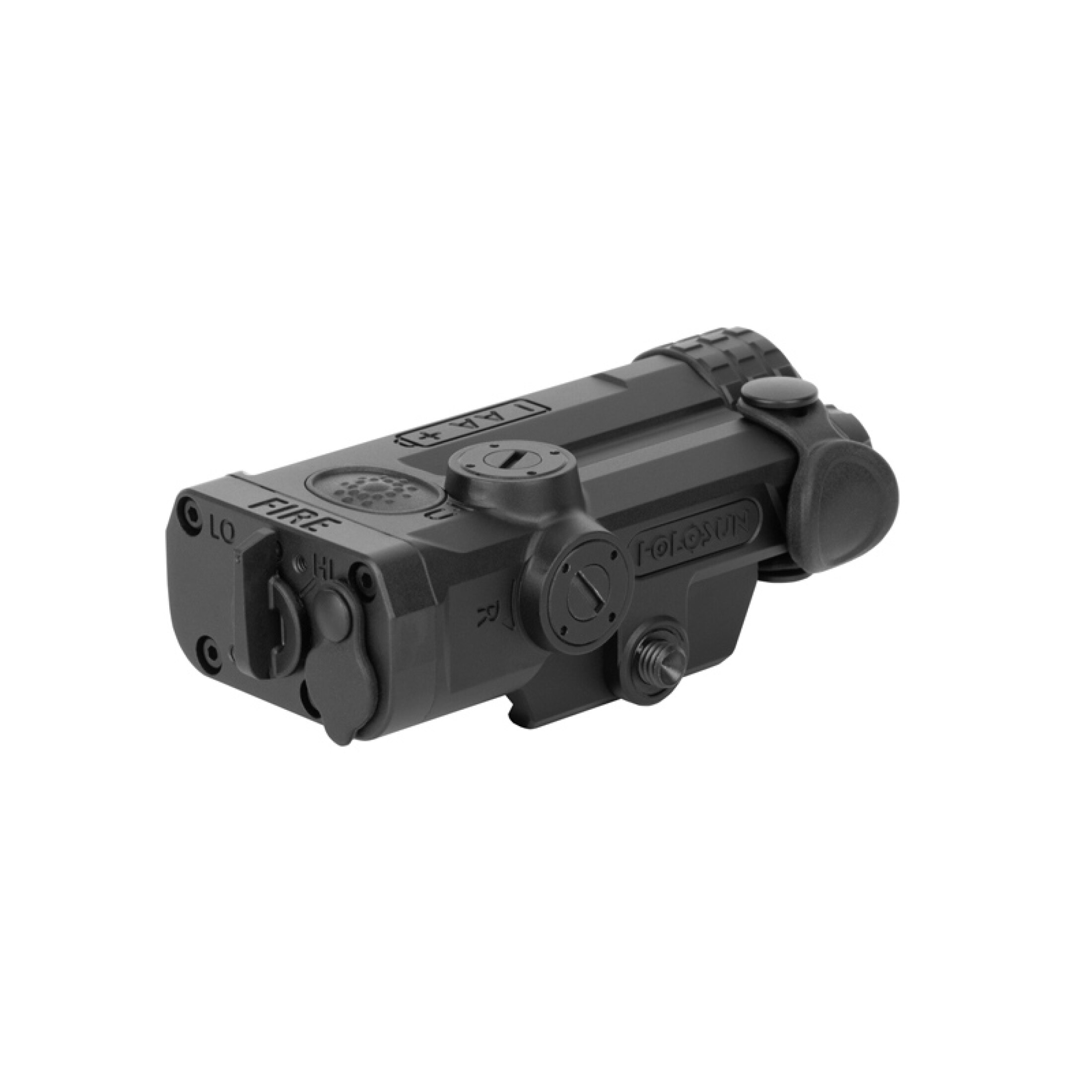

The Holosun IRIS-1-RD is a sleek, single-function laser aiming device developed for users who demand maximum reliability with minimal weight. The redesigned 7075 Aluminium housing achieves a weight reduction of approximately 33% and a 20% lower profile compared to the LS117 series - ideal for modern rifles and compact platforms. The visible dot laser with a wavelength of 635 nm nm and an output power of < 5 mW (Visible Laser Class 3R) provides a sharp aiming point. The IRIS module is operated via a centrally located, ergonomically placed push button (Top-Fire) with Momentary and Constant-ON modes, as well as a rear Power/Mode Selector; additionally, a single-button pressure pad (Crane-Plug / Gel Button) is included, allowing for remote activation at any location. The device runs on AA batteries, indicates low battery status via LED, and is protected against intrusion according to IP 68 - robust enough for tactical operations.

• Multi-laser device with coaxial green visible laser pointer & IR laser and IR illuminator
• LED white light flash light
• Rear side focusing knob
• Quick release mount
• Waterproofed remote cable switch

• Reduced, ultra-lightweight 7075 Aluminium housing - approximately 33% lighter and 20% thinner than the LS117 series.
• Visible red laser 635 nm nm, <5 mW (Visible Laser Class 3R) - clearly visible day and night.
• Ergonomic: A top-mounted release button (Momentary & Constant ON), rear mode selector switch, and tactical gel cable switch (included) allow both right- and left-handed users to operate comfortably.
• Robust: IP 68 protection, operating range -40°C - 50 °C, vibration resistant up to 1000 G
• Operated with a AA battery, 1.5V battery, adjustment range ± 50 MOA MOA

Delivery Content

Holosun IRIS-1-RD

• Remote Switch (Crane-Plug)
• AA Battery
• Adjustment Tool (e.g., Allen key)
• Lens Cleaning Cloth
• Rubber Cap / Cover Cap for Laser Opening
• Protective Case
• User Manual
• Warranty Brochure Insert

Main Data

• EAN: 4055132040093
• Warranty: 3 years
• Customs tariff number: 90132000000

Technical Parameters

• Operating Temperature: -40°C - 50 °C
• Storage Temperature: -40°C - 70 °C

Optical Parameters

• Optical Power: 5 mW
• Laser Class: 3R

Electrical Parameters

• Operating Voltage: 3 V DC
• Battery: AA battery, 1.5V
• Battery count: 1

Mechanical Parameters

• Size: 81x50x34 mm
• Material: 7075 Aluminium
• Housing Color: black
• Weight: 180 g
• Protection Class: IP 68

Shop+Web

• Delivery Content: Holosun IRIS-1-RD
• Remote Switch (Crane-Plug)
• AA Battery
• Adjustment Tool (e.g., Allen key)
• Lens Cleaning Cloth
• Rubber Cap / Cover Cap for Laser Opening
• Protective Case
• User Manual
• Warranty Brochure Insert

Holosun

• Style: Aiming
• Mounting type: QD
• Battery compartement: Seitlich
• rifle sight: yes
• Surface finish: MAO
• W&E Range: ± 50 MOA
• Vibration strength: 1000 G
• Light sources: laser
• BKA exception: yes
• Laser illuminator wavelength: 830 nm
• Footprint: Picatinny
