Holosun LE221R Multifunctional Laser Module, visible red laser and coaxially mounted IR laser, black anodized housing, CR123A Lithium Battery, 3V 1400mAh

Important Notice for Orders in Germany: Please be aware: Before shipping, we check the validity of your BKA exemption permit. Send it to us via email after your order, including your order number. Shipping can only occur after a successful verification.

Important! Article requiring permission! Legal Notice: Acquisition in Germany is only possible with a BKA exemption permit. The acquisition, possession, assembly, and use of this device are subject to legal regulations in many European countries. You can only purchase this article, which requires permission, if you have the appropriate acquisition authorization. It is the sole responsibility of the user to inform themselves about the applicable regulations in their country before acquisition or use and to comply with them. Consult your responsible authority!

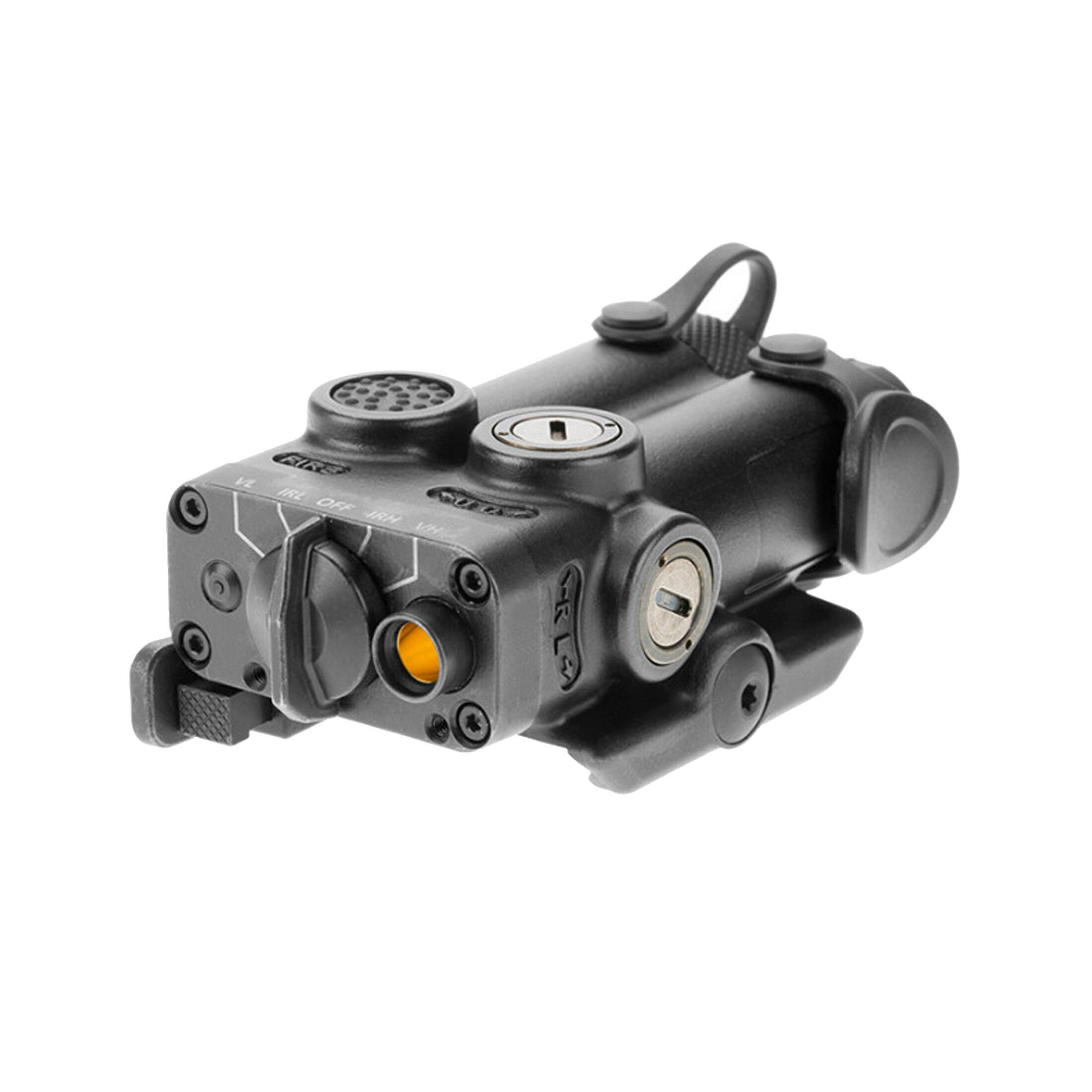

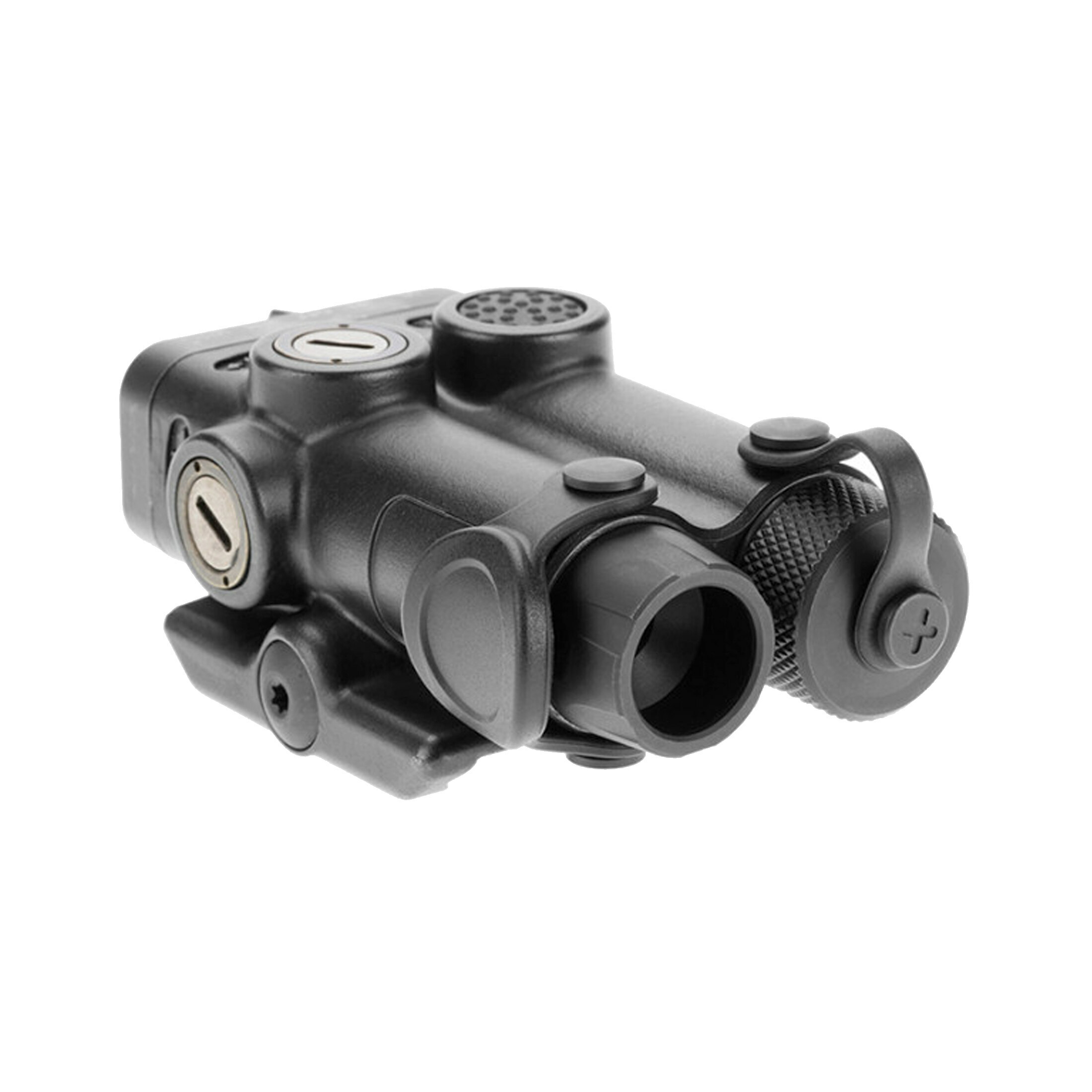

The LE221R is a laser/light module with a Class IIIa red laser and a coaxially mounted Class 2 infrared laser for use with night vision devices. The LE221R features a Grade 5 titanium housing and a quick-release Picatinny rail mount. The device is powered by a single CR123 battery, allowing for an operating time of up to 5,000 hours.

The rear-mounted selector switch allows the user to choose between Visible Low, Visible High, IR Low, and IR High. Activation is done via the included remote pressure switch or can be turned off via the switch. The LE221R also features tactile side and elevation adjustments for precise zeroing and a top-mounted activation button.

• Dual-Laser System: Visible red laser and IR laser (Class 2) for precise targeting during the day and in combination with night vision technology.
• Robust construction: High-quality Grade-5 titanium housing with quick-release Picatinny mount for maximum stability and low weight.
• Long runtime: Up to 5,000 hours of operation with only one CR123 battery.
• Flexible control: Rear selector switch for multiple operating modes (Visible Low/High, IR Low/High) and included remote pressure switch.
• Precise adjustment: Tactile elevation and windage adjustment as well as a top activation button for quick and accurate zeroing.

Delivery Content

Holosun LE221R

• CR123A Lithium Battery, 3V 1400mAh
• Remote cable switch
• Adjustment tool (e.g., Allen wrench)
• Lens cleaning cloth
• User manual
• Warranty leaflet

Main Data

• EAN: 4055132021085
• Warranty: 3 years

Technical Parameters

• Lifetime: > 5,000 h
• Operating Temperature: -10°C - 50 °C
• Storage Temperature: -40°C - 70 °C

Optical Parameters

• Beam Shape: Dot
• Optical Power: 0.7 mW
• Laser Class: 3R
• Optics: glass lens AR coated

Electrical Parameters

• Operating Voltage: 3 V DC
• Battery: CR123A Lithium Battery, 3V 1400mAh
• Battery count: 1

Mechanical Parameters

• Size: 86x49x39 mm
• Material: Titanium
• Housing Color: black
• Weight: 198 g
• Protection Class: IP 68

Shop+Web

• Delivery Content: Holosun LE221R
• CR123A Lithium Battery, 3V 1400mAh
• Remote cable switch
• Adjustment tool (e.g., Allen wrench)
• Lens cleaning cloth
• User manual
• Warranty leaflet

Holosun

• Mounting type: QD
• rifle sight: yes
• BKA exception: yes

Accessesories

certified Laser Safety Eyewear PICO-LPG-780-1064 according to DIN EN 207, suitable for infrared wavelengths >765 - 1100 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
